AIRMAR DX900 plus MultiLog Sensor - Depth Speed and Temp - NMEA 2000

Contents of the package

Features

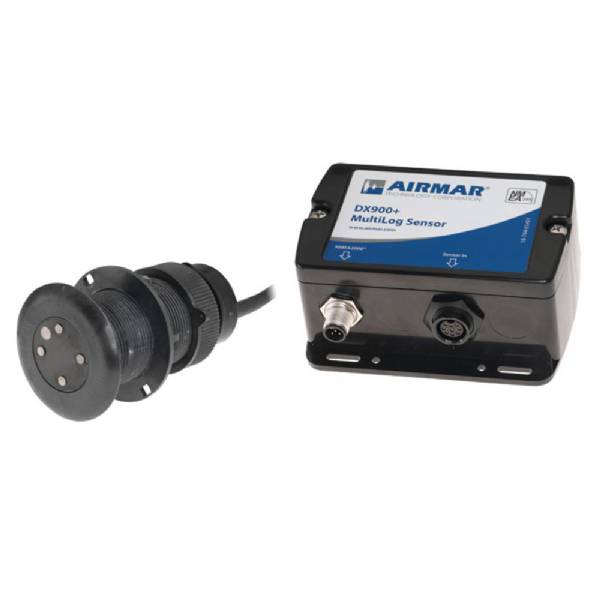

DX900+ MultiLog Sensor - Depth, Speed & Temp - NMEA 2000

Industry’s First Bluetooth® - Enabled, Multifunctional Sensor

Features:

• Measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency

• Outputs dual axis speed, depth & water temperature with no moving parts

• Offers a lightweight alternative to installing multiple sensors

• Retrofits to existing P617V AIRMAR housing

• Connects and shares data via AIRMAR’s CAST™ app (Bluetooth®-enabled)

• Outputs heel and trim* available as option

DX900+ Benefits:

• Retrofitting is easy – retractable insert fits most existing 51mm P617V Airmar thru-hull housings

• Low profile housing has minimal drag

• Measures reverse speed (which can be helpful for very light wind conditions and quick manuevers on powerboats)

• All-in-one housing; no moving parts

CAST™ App Features:

• Connects to your boat display as well as your smart device (tablet, phone, etc.) via Bluetooth® or via WiFi network

• Supports both iOS and Android platforms

• Displays all sensor features

• Performs speed calibration

• Provides diagnostic information for troubleshooting

• Offers interface to update firmware

• Can easily configure update rate

• Easily display data available from other devices on the network

Measuring Leeway:

No matter what type of racing you do, it’s important to get every ounce of speed out of your boat. AIRMAR’s dual axis, electromagnetic multifunction sensor is exactly the advantage you need. The DX900+ measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency.
