BEP MARINE Smart Battery Hub Triple Engine
This item is brand new
$1,438.95
Request price match
This item ships within 1 day
wi|wi|ln
Features

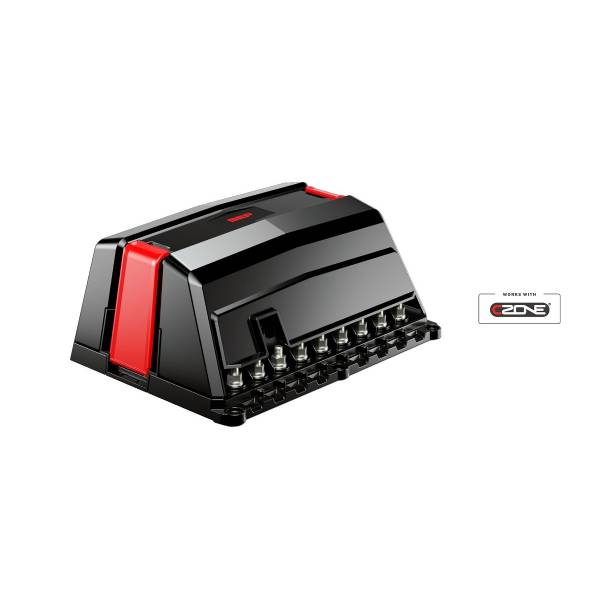

BEP Smart Battery Hub Triple Engine
Model: 80-716-0031-00- Remotely operated magnetic latching switches
- Remotely operated emergency parallel switches
- Configurable dual direction voltage sensitive switches
- Battery Voltage Monitoring
- House battery State of Charge Monitoring
- 2 x additional sensor inputs
- Safety manual override for all battery switches
- 12 or 24 volt systems
- Parallel two units together for 4, 5 and even 6 engine installations
BEP’s innovative Smart Battery Hub (SBH) is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines. Smart Battery Hub simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching (VSS) and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure. VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature. SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.
Specifications| Power consumption max | 92mA |
| Power consumption sleep | <3.5mA |
| NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Warranty period | 5 years |
| Operating temperature rang | -15C to +55C (-5F to +131F) |
| Storage temperature range | -40C to +85C (-40F to +185F) |
| Dimensions W x H x D | 14.310 x 10.841 x 6.280" |
| NMEA2000 PGN Output | Fluid Level, Pressure, Temperature, Battery Volts, State of Charge |
| Monitoring | Battery voltage, House current draw, House state of charge |
| Ingress protection | IPX7 |
| Nominal Voltage | 12 or 24V, power harvested from all batteries |
| Continuous rating | 300A |
| Intermittent rating | 700A |
| Cranking rating | 1450A |
| Additional Inputs | 3 x Master switch inputs, 2 x Analogue Inputs, 1 x Battery temperature sensor |
Specifications
Item number: 80-716-0031-00UPC: 870216049687
Package weight: 21.60 lb
