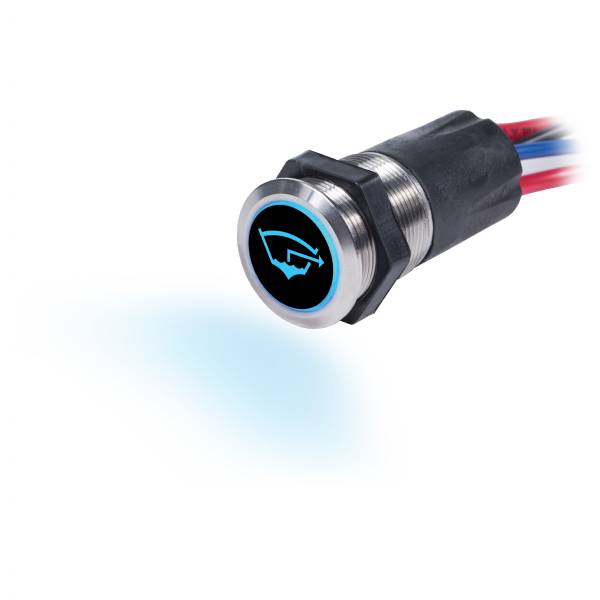

BLUE SEA 4181 15A Push Button Backlit Switch Off-(On) Momentary On
Features
Blue Sea 15A Push Button Backlit Switch Off-(On)Momentary On
Model: 4181-BSS- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
| Action | OFF-(ON)Momentary On |
| Amperage | 15A @ 12V DC |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 15V DC |
| Maximum LED Operating Current | 20mA |
| Max Panel Thickness | 0.24in (6.1 mm) |
| Mounting Hole | 7/8" (22mm) |
| Switching Cycles | 10,000 |
| Temperature Range | -20°C to 55°C |
| Termination | 3" - Bare Wire Pigtail |
Specifications
Item number: 4181-BSSUPC: 632085041816
Package weight: 0.35 lb
