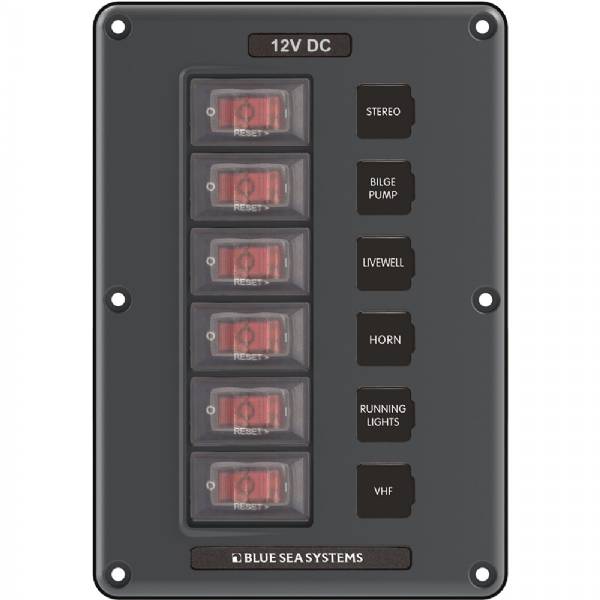

BLUE SEA 4322 Circuit Breaker Switch Panel 6 Position - Gray

Item: 4322
This item is brand new
$48.95
Request price match

Qty:

This item ships within 1 day
sw|cw|sw|ln
Ask a question   Tell a friend



Features

4322 Circuit Breaker Switch Panel 6 Position - Gray

Designed for exposed mounting applications.

Features:

  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces
  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Specifications:

  • Color: Gray
  • Positions: 6
  • Nominal Voltage: 12 VDC
  • Maximum Amperage: 45A
  • Terminal Type: 1/4" Male Quick Connect
  • Hardware: Stainless Steel #6 x 5/8" mounting screws
  • Ring Terminal Size: M5 (#10)



Specifications

Item number: 4322
UPC: 032085043223
Package weight: 1.20 lb
