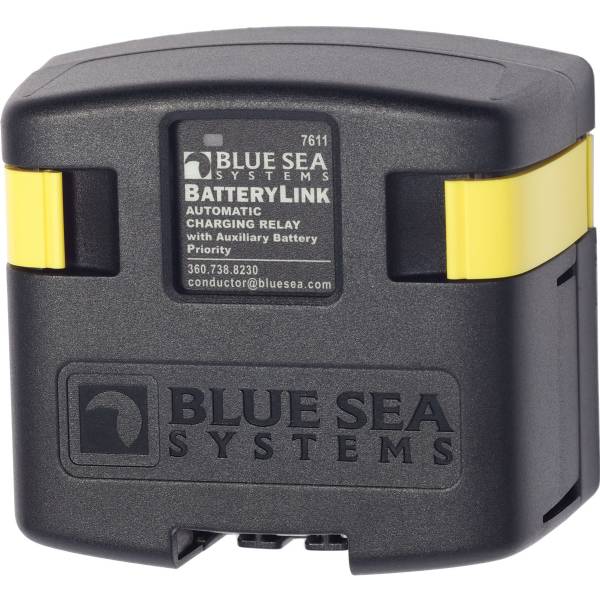

BLUE SEA BatteryLink Automatic Charging Relay 12/24vDC 120A
Features
Blue Sea Systems BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A
Model: 7611-BSS- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7?8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1?4" .032" male quick connect terminals for ground and optional features
- Largest battery bank cannot exceed Group 27
Automatically shares single source of charge with Auxiliary Battery
Specifications| Nominal Voltage | 12V DC 24V DC |
| Auxiliary Battery Priority | Yes |
| Amperage Operating Current | 175mA @ 12V (Combine) 115mA @ 24V (Combine) 15mA (Open) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 min) |
| Maximum Cable Size | 1/0 AWG |
| Maximum Torque | 140 in-lb (15.82 Nm) |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
Specifications
Item number: 7611-BSSUPC: 632085076115
Package weight: 1.25 lb
