BLUE SEA C-Series ELCI 50A 120/240v AC Double Pole Main Circuit Breaker

Item: 3104-BSS
This item is brand new
$439.95
Request price match

Qty:

This item ships within 1 day
wi|wi
Ask a question   Tell a friend


Description

Features

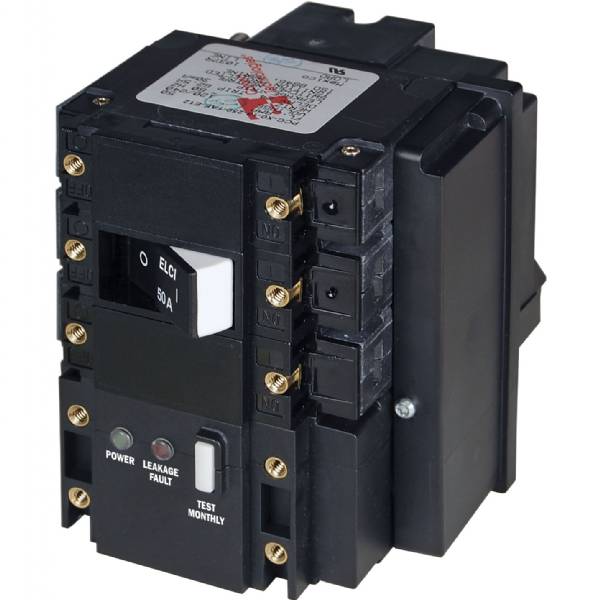

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A

Model: 3104-BSS
  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel
Specifications
Amperage50A
Actuator StyleFlat Rocker
Poles3
Ignition ProtectedYes
Maximum Voltage120V AC per pole
240V AC per pole
Circuit Breaker TypeMagnetic Hydraulic - trip free
Interrupt Capacity5000A
Minimum Operating Temperature-35° C
Maximum Operating Temperature66° C
Leakage Trip Amps30mA
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Switching Cycles10000
Weight0.85lb (0.39 kg)



Specifications

Item number: 3104-BSS
UPC: 632085031046
Package weight: 0.85 lb
