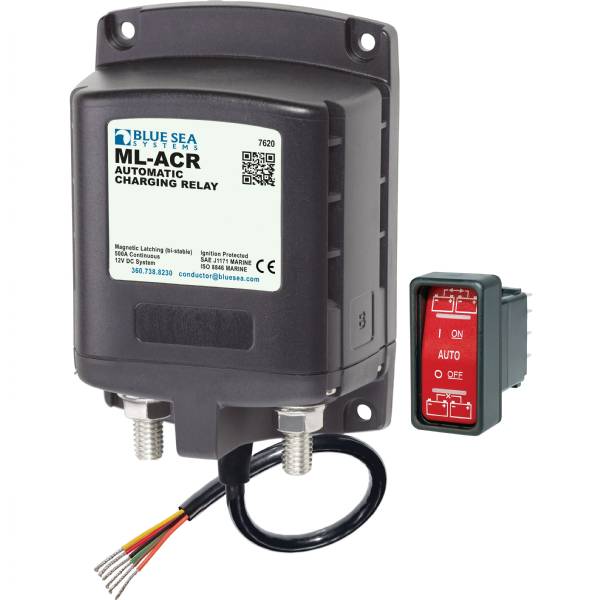

BLUE SEA ML-ACR Automatic Charging Relay 12vDC 500A

Item: 7620-BSS
This item is brand new
$192.95
Request price match

This item ships within 1 day
wi|wi

Description

Features

Blue Sea Systems ML-ACR Automatic Charging Relay - 12V DC 500A

Model: 7620-BSS

Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Dual sensing—senses charge on both battery banks
Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

Specifications

Control Circuit Connection	Tinned Wire
Nominal Voltage	12V DC
Manual Control	No
Engine Isolation	Yes
Mounting	#10
Start Assist	Yes
Start Isolation	Yes
Amperage Operating Current	13mA
Amperage Operating Current when changing state	<7.0A
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1450A DC
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	60° C
Cable Size to Meet Ratings	4/0 AWG x 2
Live Current Switching	300A @ 12V DC
Stud Material	Tinned Copper
Switching Cycles	100000
Terminal Ring Diameter Clearance	Terminal Ring Diameter Clearance
Terminal Stud Length	1.50in (38.1 mm)
Terminal Stud Size	3/8" - 16 (M10)
Wire Size	20 AWG

What's in the Box:

ML-ACR Automatic Charging Relay
SPDT Remote Control Contura Switch - ON-OFF-ON
