BLUE SEA P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank

Item: 7531-BSS
This item is brand new
$564.95
Request price match

This item ships within 1 day
wi|wi

Features

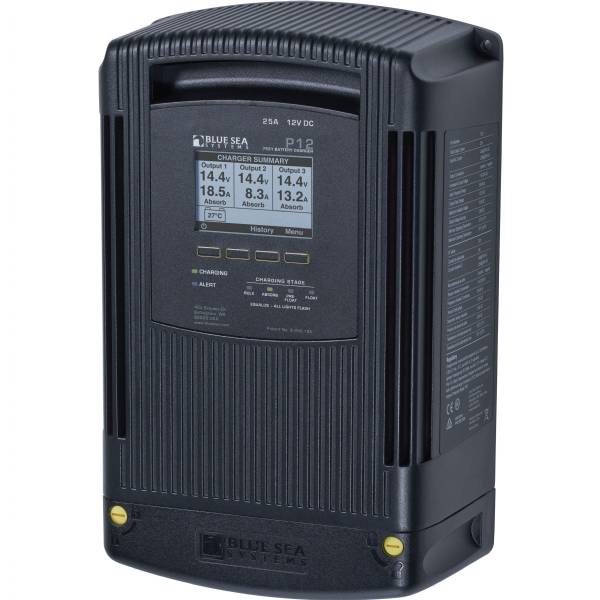

Blue Sea Systems P12 25A 12vDC Battery Charger

Model: 7531-BSS

Rugged, finned aluminum case
Rugged, finned aluminum case
Power factor corrected for efficient use of AC
Intuitive diagnostic screens
User defined charge profiles and customizable settings
Provides charging for up to three battery banks
Large, bright display
Multi-language: English, French, German, Italian, Spanish
Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
Battery Temperature Compensation - adjusts charge voltage based on battery temperature
AC over and under voltage shut down and automatic restart
Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
DC over voltage and reverse polarity protection
Surge and short circuit protection

Specifications

Total Output Current	25A
Input AC Current	4.5A @ 100V A
Maximum Output Voltage	16V DC
Nominal Voltage	12V DC
Ignition Protected	Yes
Number of Outputs	1 negative 3 positive
Stud Size	M6
Universal AC Input Voltage	115-230V AC
AC Input Frequency	45-65Hz
Output Voltage Accuracy	0.05V
Typical Float Voltage	13.5V DC
Maximum Operating Temperature	70° C
Minimum Storage Temperature	-30° C
Maximum Storage Temperature	80° C
Battery Types	AGM Flooded Lead Acid Gel TPPL
Recommended for Battery Bank Sizes	330Ah Maximum 60Ah Minimum
Screw Terminal Torque	10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4
Stud Torque	80 in-lb (9.04 Nm)
Dimension H x W x D	13.03in x 8.46in x 3.66in
Warranty	5 Year

What's in the Box:
