BLUE SEA Panel Enclosure 6 Blank Circuits Surface Mount System
Features

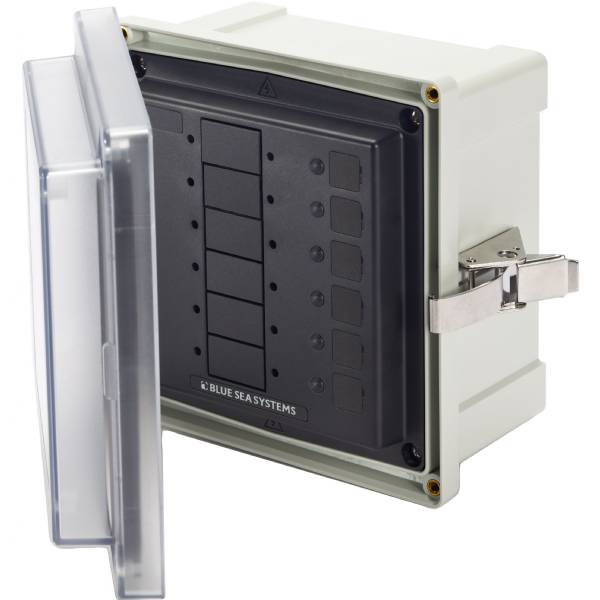

Blue Sea SMS Surface Mount System Panel Enclosure - 6 Circuit Blank
Model: 3113-BSS- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0" |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7" |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 7.00lb (3.18 kg) |
What's in the Box:
- SMS Panel Enclosure
- 6 LED plugs
- 12 circuit breaker mounting screws
- 30 Basic DC labels, 4205
- 30 Basic AC labels, 4206
- Panel Voltage ID labels 12V DC, 24V DC ,120V AC, 230V AC, 120/240V AC
Specifications
Item number: 3113-BSSUPC: 632085031138
Package weight: 7.00 lb
