BLUE SEA Sms surface mount system panel enclosure - 6 circuit blank

Item: 3113
This item is brand new
$166.95

Qty:

This item ships within 1 day
cw|cw|sw|ge
Ask a question   Tell a friend



Contents of the package





Features

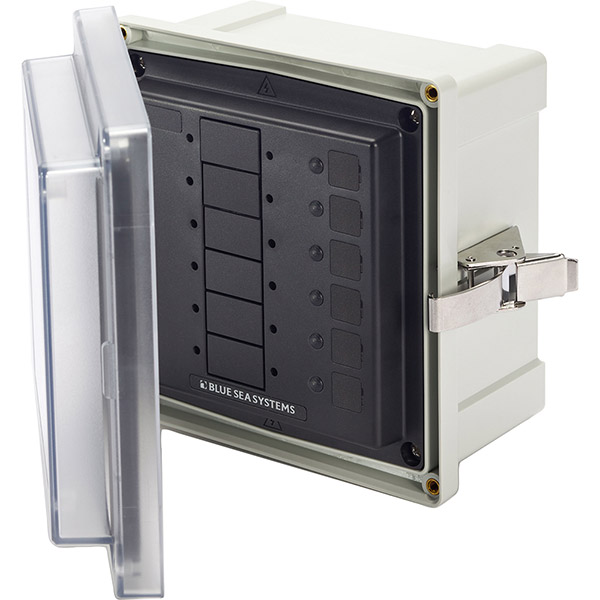

SMS Surface Mount System Panel Enclosure - 6 Circuit Blank


  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included


  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Cover Screws and Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
  • Mounting Hardware: 1/4" Diameter, #12 (6 mm)
  • Weight: 3.15lb (1.43 kg)



Specifications

Categories
Electrical | Electrical Panels
Old Category
ELECTRICAL COMPONENTS


Item number: 3113
UPC: 632085031138
Package weight: 2.8 lb
