B&G CPU Pack WTP3 Instrument System

---

Contents of the package

Features

B&G WTP3 Processor Unit
The heart of the ultimate sailing instrument system

WTP3 provides data collection and eliminates the effects of boat motion to provide the most powerful and flexible instrument system available to the Grand Prix user. A powerful Central Processing Unit (CPU) links to data acquisition modules which collect and feedback to the CPU.

Manipulate data with custom calibration files, log data using onboard SQL database or use Javascript to develop further features.

Wave Technology uses avionics grade axial rate sensors to measure and eliminate the effects of boat motion from wind data. Better Data = Better Decisions.

WTP3 is a lightweight, but incredibly robust system. Water resistant to IP67 standard, resistant to the shock and vibration found in modern ocean racers. It won't let you down.

WTP3 suits your data requirements: CAN, Ethernet, USB data offload, NMEA 0183, RS232, RS422 and NMEA 2000 compatibility. Data acquisition modules allow easy design and expansion.

Integrates with a massive range of software, displays and sensors. Analogue inputs, pulse inputs, Digital I/O provide flexible integration options alongside serial and FastNet interfaces.

WTP3 contains a powerful onboard data logger, enabling user configurable data to be recorded. Whether carrying out tack analysis, at high data rates, or logging positional track data for long ocean race legs WTP provides the data you need.

WTP3 integrates directly with B&G's Deckman Tactical Navigation software via Ethernet. Providing direct access of the WTP3 data and setup for easy, on-the-fly, adjustments.

WTP3 runs a powerful processing core to ensure that the unit delivers the data with incredibly low latency. The data acquisition network can be run at up to 1Mbit baud rates, or run at reduced speeds to accommodate large Superyacht networks.

Specifications

Display                 Requires external displays
Resolution             N/A
Main Functions       Depth, Speed, Temp, Wind
Sensors Included    None

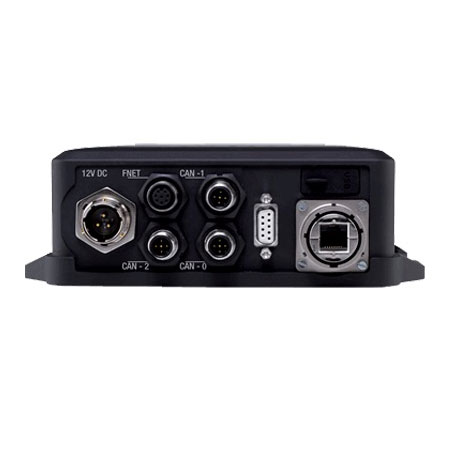

Interface               3 ea. Independent CAN ports, Fastnet for displays, 100Mbit Ethernet, 9-pin RS232 serial
                            port.
Other Functions      For ocean racing and superyachts, offers widest range of data input integration and data
                            management.
Dimensions           7.6"W x 6.5"H x 2.6"D
Warranty              Three years


Item number: 000-10313-001
UPC: 738087008823
Package weight: 9 lb

---
