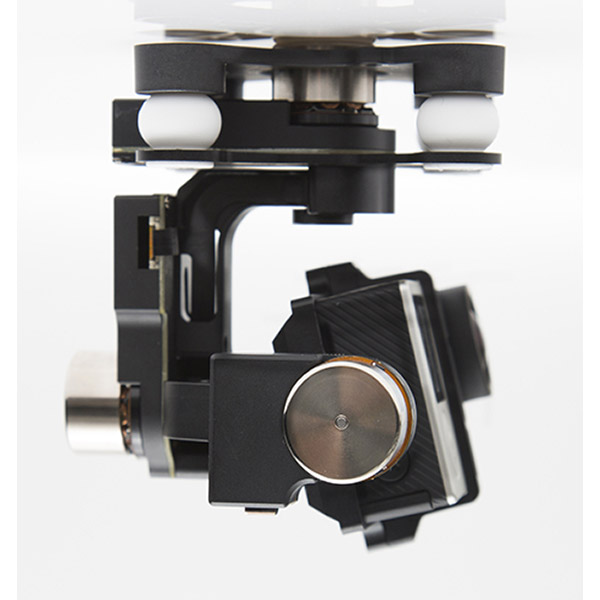

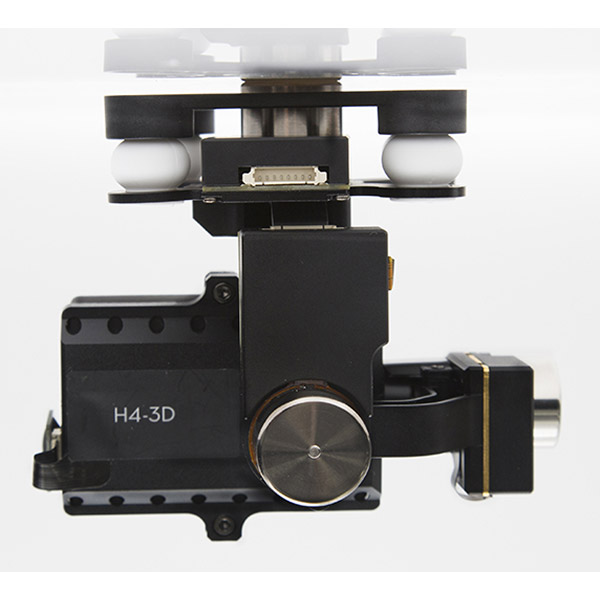

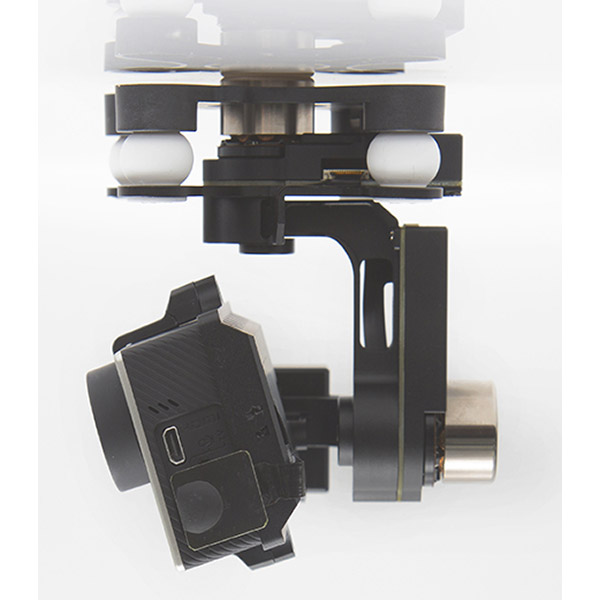

DJI Zenmuse H4-3D Camera Stabilizer for GoPro HERO4 Black
This item is brand new
$399.00
This item ships within 1 day
Contents of the package
Features
3-AXIS STABILIZATION
Forget shaky, unusable aerial footage. Fly your GoPro®
Hero4 Black with this gimbal and capture smooth, stable content like
never before. Your camera is stabilized to prevent unwanted roll, tilt,
and pan motions, giving you the confidence to fly difficult maneuvers
and get the shots you want.
EASY TO SETUP
Simply mount the gimbal to your flight platform, attach your camera,
and you’re ready to fly. Your H4-3D gimbal is calibrated and
pre-programmed to work right out of the box.
CROSS-PLATFORM COMPATIBILITY
The H4-3D is compatible with most DJI platforms, including the Phantom 2 and Flame Wheel systems with the A2, WooKong-M, or NAZA-M flight controllers.*
TRUSTED ZENMUSE TECHNOLOGY
DJI’s Zenmuse technology is the most trusted among filmmakers and
enthusiasts worldwide when it comes to aerial camera stabilization. Our
patented sensors, advanced algorithms, and custom-built gimbal motors
give you unmatched stability and reliability in the air.
INDEPENDENT IMU
Camera stabilization is impossible without tracking how your
aircraft is being tilted and moved in real time. That’s why the H4-3D
has its own integrated Inertial Measurement Unit (IMU) constantly
collecting precise information and feeding it to the gimbal. This IMU
tells the gimbal exactly how you’re moving in the sky and how much
countering force is required to keep your camera still, every
millisecond.
SMALL, LIGHTWEIGHT, DURABLE
Engineered to add a minimal amount of payload weight to your flight
platform, the H4-3D maximizes flight time without sacrificing quality.
By combining a compact yet high strength aluminum body with a high level
of durability, you fly knowing that your camera is secure.
DOWNLOADABLE UPDATES
DJI is constantly working to improve your experience and help you
get the most out of your systems. Free firmware updates are available
for your H4-3D at the click of a mouse and ensure you are at the
forefront of this technology.
OPTIONAL GCU MODULE

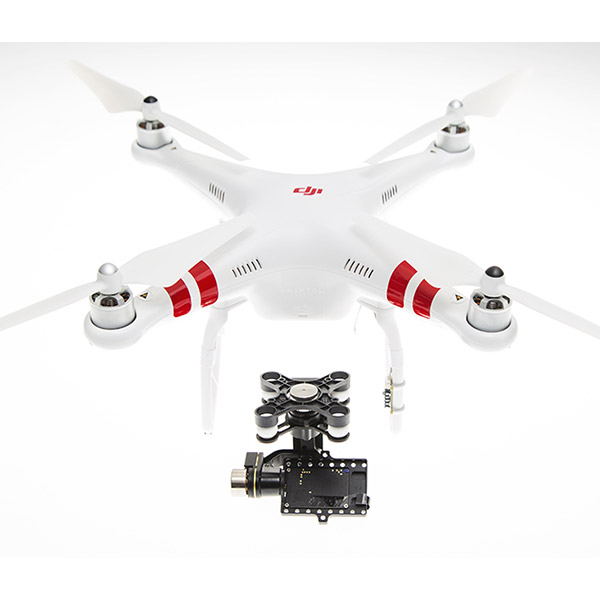

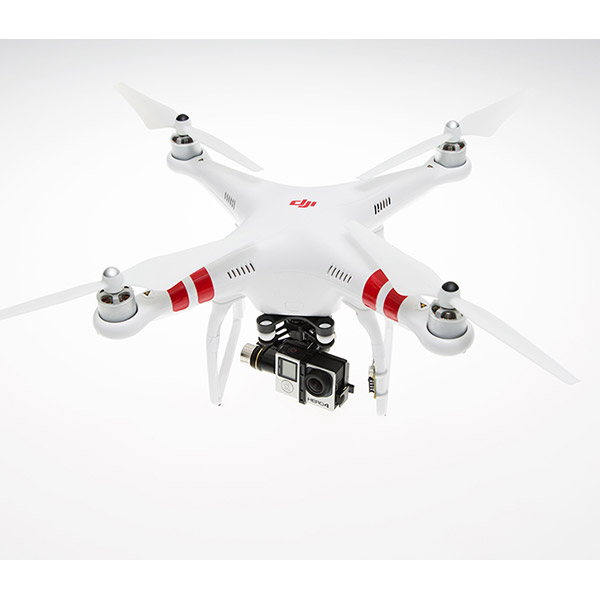

The Zenmuse H4-3D gimbal is customized for the DJI Phantom 2 and
does not include the optional Gimbal Control Unit (GCU). If you want to
use your H4-3D with other DJI flight controllers and flight platforms,
the independent GCU module is required and sold separately.
Specifications
General | Features
|
|---|---|
Peripheral | Supported Camera GoPro Hero4 Black GCU Input Power 3S~6S LiPo (12V~26V) Assistant Software System Requirement Windows XP SP3; Windows 7; Windows 8 |
Mechanical & Electrical | Gimbal Operating Current
Gimbal Input Power 3S~6S (12V ~ 26V) Operating Temperature -10°C ~ 50°C Gimbal Weight 168g (camera excluded) Gimbal Dimensions (With Damping Unit) 103mm X 92mm X 80mm GCU Weight 22g GCU Dimensions 42 mm X 32 mm X 9.3 mm |
Performance | Controlled Angle Accuracy Pitch/Roll:±0.02°, Yaw: ±0.03° Maximum Controlled Rotation Speed Tilt axis: ±130°/s Controlled Rotation Range Tilt axis control: －130 ~ +45° |
Regulatory Approvals | FCC (USA)Yes CE (EU)Yes RoHS (EU)Yes |
Item number: CP.ZM.000145
UPC: 6958265113352
Package weight: 0.4 lb
List of Compatible Units:
| DJI Phantom 2 Ready to Fly Multifunctional Quad-Rotor System |
| DJI Phantom 2 Ready to Fly Multifunctional Quad-Rotor System with Zenmuse H3-2D Gimbal for GoPro 3 |
Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
