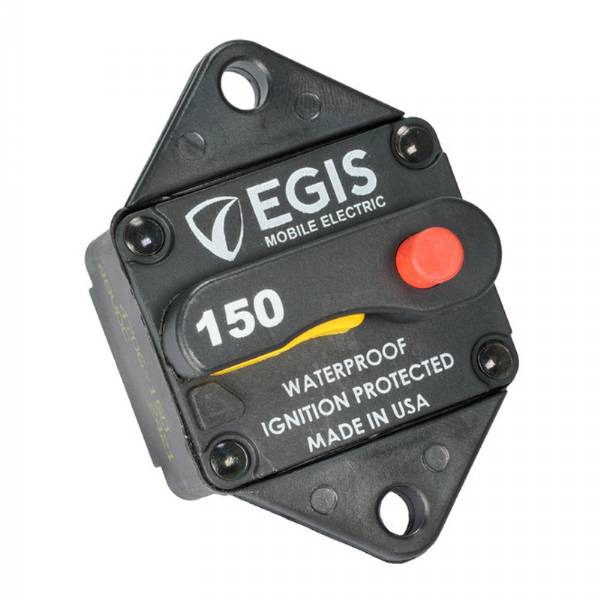

EGIS 285-Series 150 Amp Circuit Breaker Panel Mount
Features
EGIS 285-Series 150 Amp Circuit Breaker Panel Mount
Model: 4706-150- ON/OFF HIGH VISIBILITY CONTROLS Sealed against dust and moisture penetration. High temp rated for all installation locations.
- PANEL MOUNT FLANGE Provides Rear / Front panel installation options
- STAINLESS HARDWARE / SERRATED FLANGE NUTS Corrosion and vibration resistant for harsh environment applications.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 150 |
| Max Voltage (vdc) | 48 |
| cycling ENDURANCE | 6,000 |
| Interrupt Current @ 16 Vdc (Amps) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| ingress protection rating | IP67 |
Specifications
Item number: 4706-150UPC: 850035199091
Package weight: 0.33 lb
