FLIR M400 Multi-Sensor Thermal/Visable Camera 30Hz with JCU2
Item: 432-0012-08-00
This item is brand new
$62,889.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|cw|wi
This item is brand new
$62,889.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|cw|wi
Features

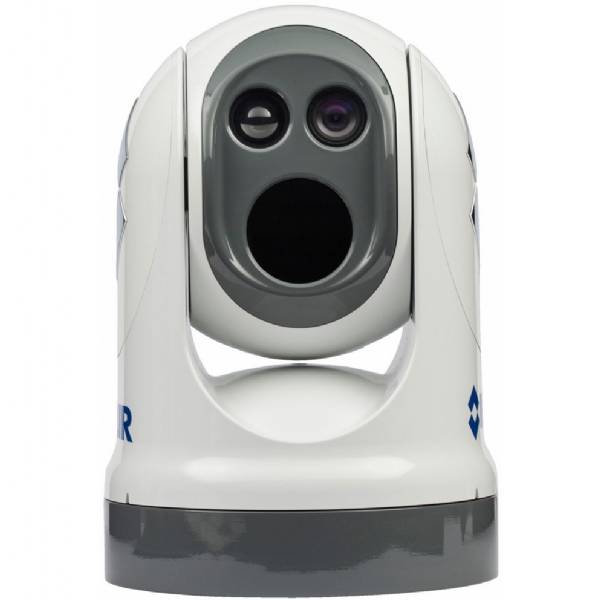

FLIR M400 Premium Multi-Sensor Marine Thermal Camera
Model: 432-0012-08-00- Digital Detail Enhancement (DDE) assures a crisp thermal image, even in scenes with extreme temperature dynamics.
- High intensity LED spot light
- Gyro-stabilized to ensure steady viewing in heavy sea conditions.
- HD color lowlight camera with 30x optical zoom
- High resolution 640x480 thermal sensor with optical zoom 18° to 6° Horizontal Field of View
- Rugged, waterproof gimbal enclosure with 360° pan and +/-90° tilt capability
The FLIR M400 thermal night vision camera is a versatile, high-performance pan/tilt marine camera system designed for best-in-class short and long range target identification. The M400’s advanced 640x480 sensor delivers crisp thermal video images in total darkness and lowlight conditions. An integrated HD color visable camera and tight-beam LED spotlight augment target identification for added safety. M400 has a continuous optical thermal zoom lens (up to 4X) that allows operators to see other vessels and targets at longer ranges. Active gyrostabilization insures a steady image, plus radar tracking and optional video tracking keep potentially dangerous targets in view at all times.
Specifications| GENERAL | |
| Camera Head Size | 15.18" x 18.68" / 15.5" x 22" Swept Volume Cylinder |
| Field of View | 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom |
| Integration Options | IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking) |
| Pan & Tilt Coverage | 360° Continuous Pan, +/-90° Tilt |
| Typical Configuration | Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser |
| Warranty | 2 Year / 3 years with registration |
| CONNECTIONS & COMMUNICATIONS | |
| Construction Type | BNC |
| Video Output | Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL |
| DAYLIGHT IMAGING | |
| Detector Type - Daylight | Long range color daylight and low light viewing |
| Field of View - Daylight | 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom |
| Focal Length - Daylight | 129 mm to 4.3 mm |
| Minimum Illumination - Daylight | >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W) |
| Resolution - Daylight | High Definition up to 1080/30p |
| Zoom | 30X Optical Zoom |
| ENVIRONMENTAL | |
| Automatic Window Defrost | Standard |
| Operating Temperature Range | -20 to 55 deg C |
| Storage Temperature Range | -50°C to 80°C |
| MARINE IMAGING & OPTICAL | |
| Video Tracking | No |
| POWER | |
| Power Consumption | <50 W nominal; 130 W peak, 270 W 2/heaters |
| Power Requirements | 24V DC |
| SPOTLIGHT | |
| Beam | 5° Divergence Angle |
| Lumens | 580.0 |
| Type | LED |
| THERMAL IMAGING | |
| Detector Type - Thermal | 640 480 VOx Microbolometer |
| E-Zoom - Thermal | 1x to 4x |
| Field of View - Thermal | 18° to 6° / 1.5° HFOV with e-zoom |
| Field of View (H x V) - Thermal | 18° to 6° / 1.5° HFOV with e-zoom |
| Focal Length - Thermal | 35mm (wide) to 105mm (narrow) |
| Image Processing - Thermal | FLIR Propriety Digital Detail Enhancement™ |
| Thermal Resolution | 640 x 480 |
What's in the Box:
- M400 Camera
- JCU2
- Ethernet switch with PoE
Specifications
Item number: 432-0012-08-00UPC: 723193824917
Package weight: 30.00 lb
