FLIR M400XR Multi-Sensor Thermal/Visable Camera Stabelized with JCU
Item: 432-0012-04-00
This item is brand new
$75,467.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|cw|wi
This item is brand new
$75,467.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|cw|wi
Contents of the package
Features

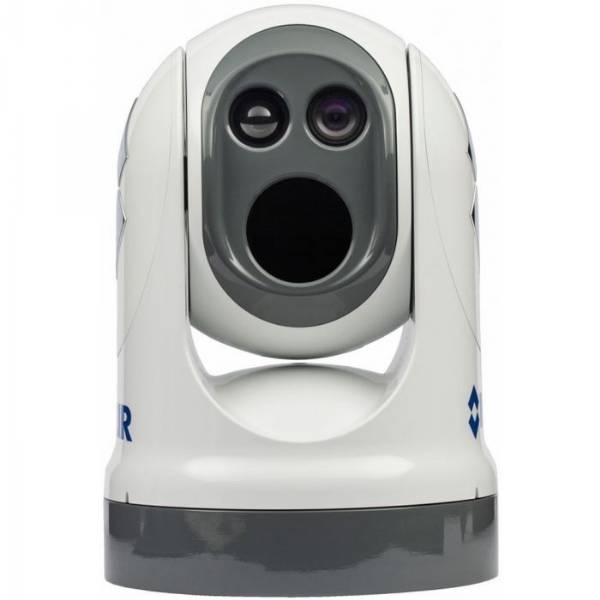

FLIR M400XR Stabilized Thermal/Visible Camera with JCU (NTSC, 30Hz)
Model: 432-0012-4-00- M400XRs thermal camera features a 4x optical zoom lens so targets remain in clear, crisp focus right up to maximum magnification.
- Combination thermal sensor with up to 3X optical zoom and HD Color camera with 30X zoom.
- Rugged, waterproof gimbal enclosure with automatic window heaters keeps image clear, while gyro-stabilization ensures steady viewing in heavy seas.
The FLIR M-400XR provides exceptional situational awareness for first responders. It includes custom fire fighting software that displays a target temperature meter and isotherms. InstAlert™ mode depicts the hottest objects in shades of red and orange for easy identification, while IceAlert™ turns the coolest objects in view blue and green.
Specifications| GENERAL | |
| Camera Head Size | 15.18" x 18.68" / 15.5" x 22" Swept Volume Cylinder |
| Detector Type | Long range color daylight and low light viewing |
| E-Zoom | 1x to 4x |
| Field of View | 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom |
| Image Processing | FLIR Propriety Digital Detail Enhancement™ |
| Integration Options | IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking) |
| Pan & Tilt Coverage | 360° Continuous Pan, +/-90° Tilt |
| Typical Configuration | Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser |
| Warranty | 2 Year / 3 years with registration |
| OVERVIEW | |
| Focal Length | 129 mm to 4.3 mm |
| 129 mm to 4.3 mm | 45lbs |
| COLOR CAMERA | |
| Resolution | High Definition up to 1080/30p |
| CONNECTIONS & COMMUNICATIONS | |
| Construction Type | BNC |
| Video Output | Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL |
| DAYLIGHT IMAGING | |
| Detector Type - Daylight | Long range color daylight and low light viewing |
| Field of View - Daylight | 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom |
| Focal Length - Daylight | 129 mm to 4.3 mm |
| Minimum Illumination - Daylight | >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W) |
| Resolution - Daylight | High Definition up to 1080/30p |
| Zoom | 30X Optical Zoom |
| ENVIRONMENTAL | |
| Automatic Window Defrost | Standard |
| Operating Temperature Range | -20 to 55 deg C |
| Storage Temperature Range | -50°C to 80°C |
| MARINE IMAGING & OPTICAL | |
| Video Tracking | Yes |
| POWER | |
| Power Consumption | <50 W nominal; 130 W peak, 270 W 2/heaters |
| Power Requirements | 24V DC |
| SPOTLIGHT | |
| Beam | 5° Divergence Angle |
| Lumens | 580 |
| Type | LED |
| THERMAL IMAGING | |
| Detector Type - Thermal | 640 480 VOx Microbolometer |
| E-Zoom - Thermal | 1x to 4x |
| Field of View - Thermal | 18° to 6° / 1.5° HFOV with e-zoom |
| Field of View (H x V) - Thermal | 18° to 6° / 1.5° HFOV with e-zoom |
| Focal Length - Thermal | 35mm (wide) to 105mm (narrow) |
| Image Processing - Thermal | FLIR Propriety Digital Detail Enhancement™ |
| Thermal Resolution | 640 x 480 |
| VISIBLE CAMERA | |
| Minimum Illumination | >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W) |
What's in the Box:
- M400XR Camera
- JCU2
- Ethernet switch with power over Ethernet (PoE)
Specifications
Item number: 432-0012-04-00
UPC: 723193824931
Package weight: 30.00 lb
