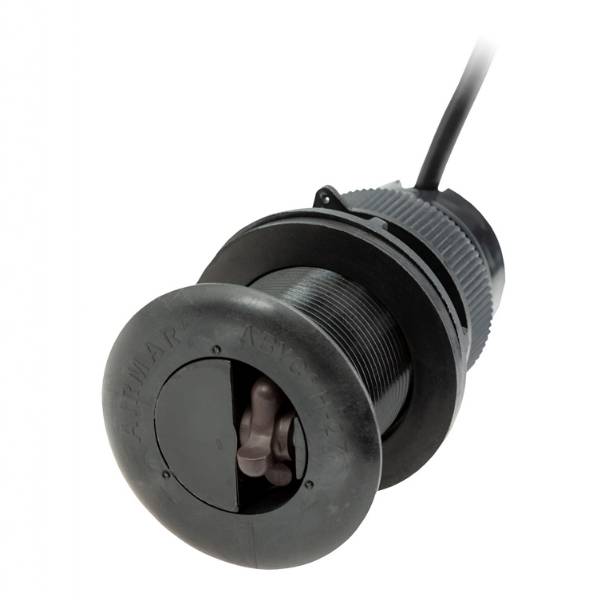

FURUNO DST810PSF NMEA 2000 Plastic TH Depth/Speed/Temp

Item: DST-810PSF
This item is brand new
$347.95
Request price match

This item ships within 1 day
wi|wi

Features

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: DST-810MSF

5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
Integrated attitude sensor for heel and trim benefits sailing and power boats
Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
DST810 stores configurations and delivers data to the NMEA 2000® network.
Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
Popular depth sensor for shallow water performance.

Specifications

Acoustic Window	Urethane
Hull Deadrise	Up to 22°
Data Update Rate	Depth 1X/second
Data Update Rate	Speed 5X/second
Attitude Accuracy	+/— 1° nominal after sensor calibration
Depth Frequency	235 kHz
Minimum Depth Range	0.5 m (1.6')
Maximum Depth Range	Up to 100 m (330')—NMEA 2000®
Speed Range	Up to 45 knots
Pressure Rating	3 m (10')
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage	9 VDC to 16 VDC—per NMEA 2000
Supply Current	<200 mA—per NMEA 2000®
Wireless Protocol	Bluetooth Low Energy (BLE)
Wireless Range	Up to 30 feet depending on mount location
Standard Cable Length	6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy	+/-0.5°C (+/-1.8°F)
Temperature Sensor Range	-10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN)	3

What's in the Box:
