GARMIN Gmm 150


Item: 010-01020-00
This item is brand new
$7,499.99

NO LONGER AVAILABLE
Backorder, ships in 3 - 4 weeks

Ask a question   Tell a friend


Accessories
Description

Contents of the package

  • GMM 150
  • Protective cover
  • Flush mount gasket and hardware
  • Power cable
  • DVI-D cable 6.5 ft
  • 6 ft network cable
  • Documentation



Features

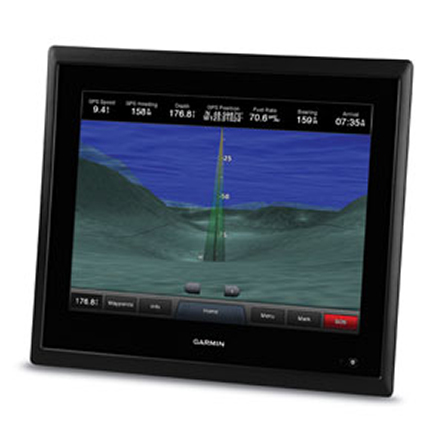

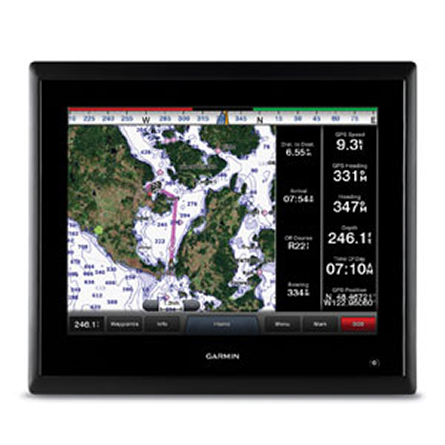

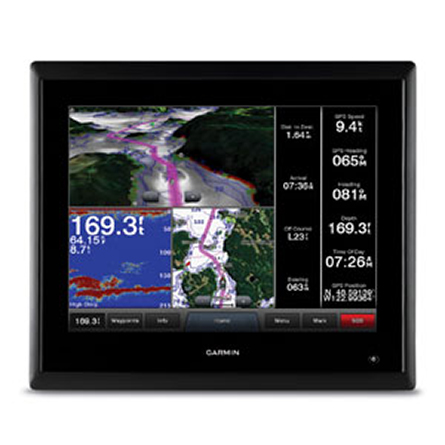

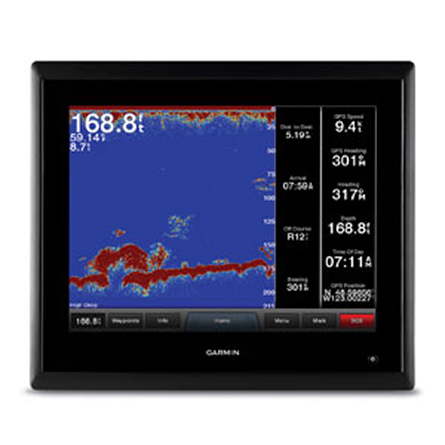

Our ultra-thin 15” Garmin Marine Monitor is made to complete the GPSMAP® 8500 black box system, creating the ultimate glass helm solution and custom look for your vessel.

Multi-touch Glass Helm Display
Ultra-clear XGA touchscreen with full 1080p video input includes pinch-to-zoom and other touch controls for intuitive operation. Anti-glare and bright LED backlighting makes this display clearly viewable in bright sunlight; auto-dimming provides outstanding visibility at night.

Full System Integration
Integrates...everything, including various sonar technologies, integrated autopilot, connectivity, apps, engine data and multi-media when paired with the GPSMAP 8500 black box system. SmartMode control allows the user to quickly change all screens at a helm in sync to a preset mode. Everything you need is at the tip of your finger, all on one screen.

Customize Layouts with SmartMode Control
Fully customizable layouts, data and gauges allow you to place the information you need to see right where you want it - when paired with the GPSMAP 8500 black box system. SmartMode control allows you to switch all monitors in sync from one mode to another without manually switching each monitor separately.

Flexible Installation Options
Minimizing footprint allows the Garmin Marine Monitor to be installed where other, bulkier monitors or MFDs won’t fit. The black box system and slim design of the monitor allows installation in situations where space is limited - with the GPSMAP black box installed independently in a separate location.

Choose low-profile flush mount, or go for the ultimate in custom appearance with our exclusive flat-mount glass helm option.




Specifications

Physical & Performance
  • Unit dimensions, WxHxD: 14.7" x 12.9" x 2.9" (37.5 cm x 32.6 cm x 7.3 cm)
  • Display resolution, WxH: 1024 x 768 pixels
  • Display type: Touchscreen XGA display (anti-glare finish)
  • Weight: 9.6 lb (4.3 kg)
  • Waterproof: yes (IPX6 front when mounted correctly)
Features and Benefits
  • Headphone jack/audio line-out: No
  • Audio/video input/output: No
  • Portable: No
  • Additional: Interface Inputs/Outputs: 2 DVI-D video inputs, 3 VGA video inputs, 3 composite BNC video inputs, component BNC video input, Garmin processor box port


Item number: 010-01020-00
UPC: 753759998134
Package weight: 14 lb
Product Series
Compatible With

List of Compatible Units:

GARMIN GPSMAP 8500 Black Box
GARMIN GPSMAP 8530 Black Box


Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
