GARMIN Reactor 40 Autopilot For Kicker with GHC20
This item is brand new
$2,366.95
Backorder, ships in 3 - 4 weeks
|sw|wi|ln
Features
Garmin Reactor™ 40 Kicker Autopilot With GHC™ 20 Autopilot Display
Model: 010-00705-94- Specially designed for boats with small gasoline outboard motors up to 20 horsepower
- Helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current
- Includes convenient floating handheld remote control with a bright, sunlight-readable display
- Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish
- Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000® network-compatible GPS system
Whether you’re going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course — even against wind, waves or heavy current.
The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with the included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.
Specifications| ECU-14 | |
| Dimensions | 6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm) |
| Supply voltage range | 10 to 32 volts |
| Operating temperature range | -20° to 70° C |
| Typical power consumption | 1 to 2 amps average depending on weather conditions |
| Water rating | IPX7 |
| GHC-20 | |
| Unit dimensions, WxHxD | 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm) |
| Display resolution, WxH | 320 x 240 pixels |
| Display type | QVGA color LCD display |
| NMEA output | NMEA 0183, NMEA 2000® |
| Supply voltage | Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC |
| Operating temperature | -15° C to 70 C° (5° F to 158° F) |
| Max power consumption | 3W |
| Viewing angle | 170° |
| Brightness | 1200 cd/m2 (NIT) |
| Water rating | IPX7 |
| NMEA 2000 LEN (Load Equivalency Number) | 7 (350 mA at 9VDC) |
| Reactor Remote | |
| Physical dimensions (W x H x D) | 6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm) |
| Weight | 3.8 oz (109 g) without batteries |
| Display type | Sunlight-visible, transflective memory-in-pixel (MIP) |
| Display size | 1.2" (3.0 cm) diameter |
| Display resolution | 240 x 240 pixels |
| Power | 2 x AA batteries (sold separately) |
| Steering Actuator | |
| Dimensions | |
| Motor side | Extends 4" (10.3 cm) from end of tilt tube |
| Motor | 2.5" (6.2 cm) diameter |
| Overall length | Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm) |
| General | |
| Operating temperature range | -20° to 70° C |
| Water rating | IPX7 |
| Throttle Actuator | |
| Dimensions | 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm) |
| Operating temperature range | 0° to 70° C |
| Water rating | IPX6 |

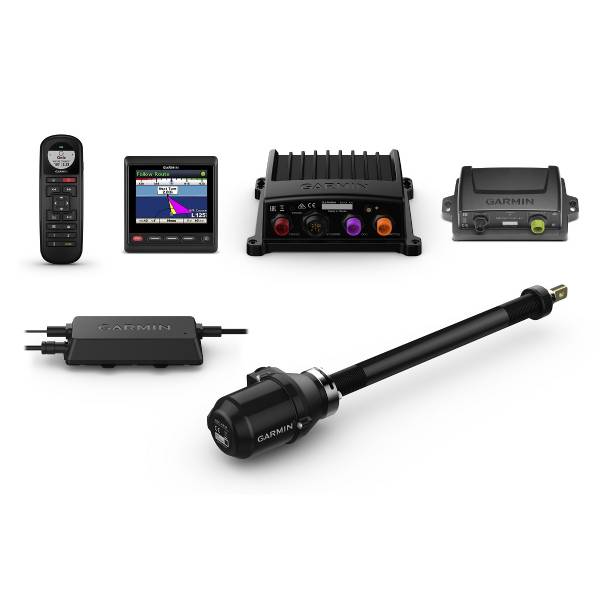

What's in the Box:
- GHC™ 20
- CCU (Course computer unit)
- ECU (Electronic control unit)
- ECU power cable
- ECU to CCU interconnect cable
- Steering actuator
- Throttle actuator
- Autopilot Remote
- Documentation
Specifications
Item number: 010-00705-94UPC: 753759221706
Package weight: 18.19 lb
