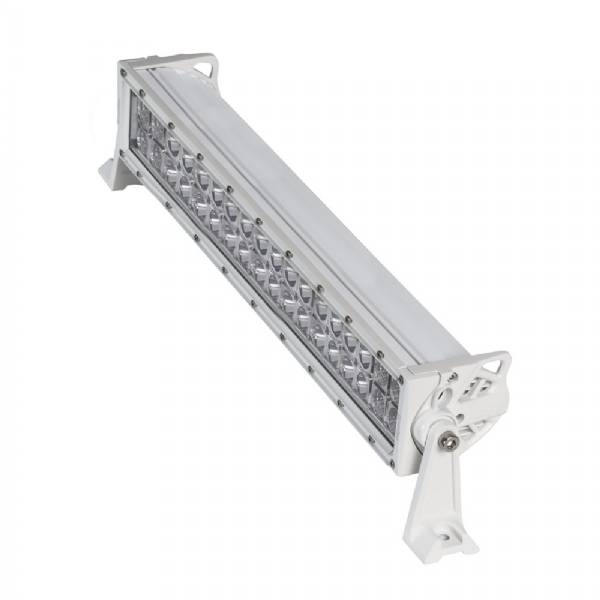

HEISE 20 inch Dual Row Marine Bar

Item: HE-MDR20
This item is brand new
$263.00

NO LONGER AVAILABLE
Backorder, ships in 3 - 4 weeks
|cw
Ask a question   Tell a friend



Features

20" Dual Row Marine Bar

Specifications:

  • Input Voltage: 10-30V
  • Wattage: 108W
  • Raw Lumens: 8640
  • LUX @ 10M: 612
  • Color Temperature: 6000K
  • Beam Pattern: Combo: Flood (90°) / Spot (8°)

Construction:

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Hole Dimensions: Brackets turned inward - 19.50"
  • Brackets turned outward - 21.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 4.8"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

Operation:

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 5.7 Amps @ 13.8 Volts
  • IP Rating: IP68
  • Protections: Reverse Polarity



Specifications

Item number: HE-MDR20
UPC: 086429365203
Package weight: 7.00 lb
