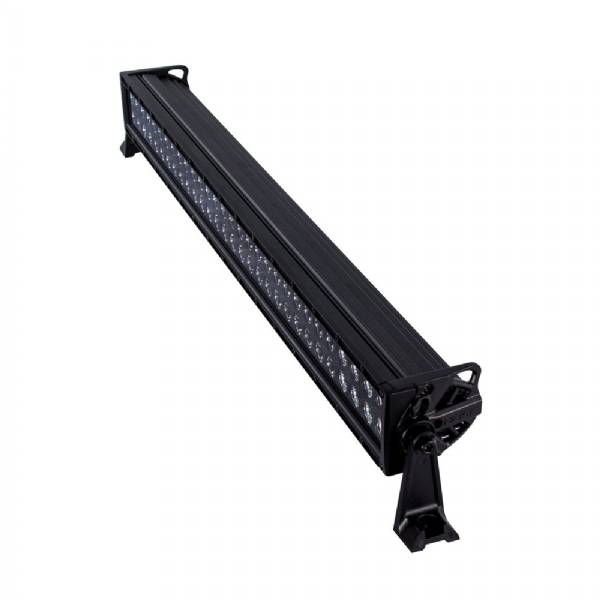

HEISE Dual Row Blackout LED Light Bar - 30 inch

Item: HE-BDR30
This item is brand new
$597.99

Qty:
Backorder, ships in 3 - 4 weeks
cw|cw|pe
Ask a question   Tell a friend



Features

Dual Row Blackout LED Light Bar - 30"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 180W (60–3W CREE LEDs)
  • Raw Lumens: 14400
  • LUX @ 10M: 870
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Die–cast Aluminum Housing
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Hole Dimensions:
  • Brackets turned inward – 31.375"
  • Brackets turned outward – 33.75"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 9.5 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity



Specifications

Item number: HE-BDR30
UPC: 086429312757
Package weight: 10.15 lb
