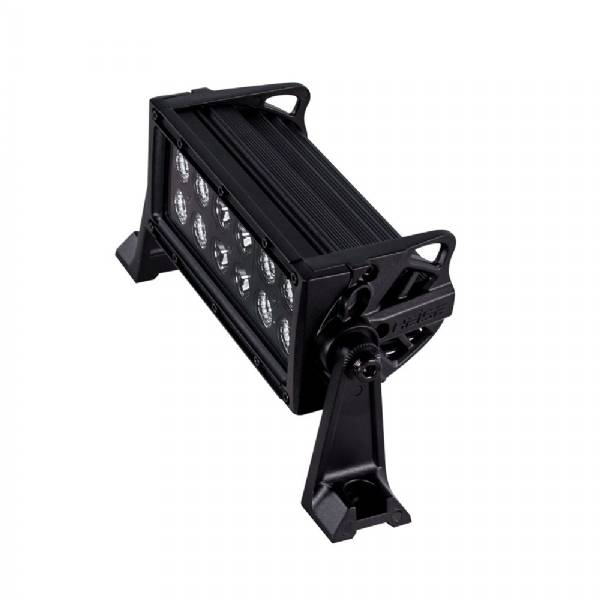

HEISE Dual Row Blackout LED Light Bar - 8 inch
Features
Dual Row Blackout LED Light Bar - 8"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 36W (12–3W CREE LEDs)
- Raw Lumens: 2880
- LUX @ 10M: 215
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die–cast Aluminum Housing
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Hole Dimensions:
- Brackets turned inward – 7.25"
- Brackets turned outward – 9.5"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 1.9 amps @ 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
Specifications
Item number: HE-BDR8UPC: 086429312726
Package weight: 3.40 lb
