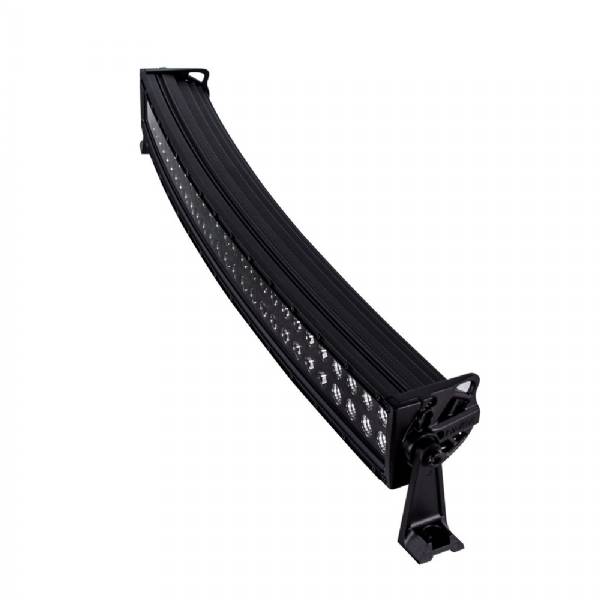

HEISE Dual Row Curved Blackout LED Light Bar - 30 inch

Features

Dual Row Curved Blackout LED Light Bar - 30"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 180W (60–3W CREE LEDs)
• Raw Lumens: 14400
• LUX @ 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned inward – 31.25"
• Brackets turned outward – 33.6875"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 9.5 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
