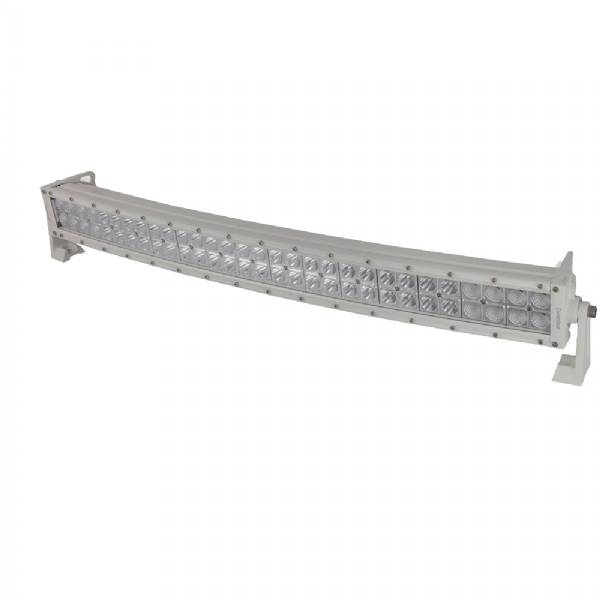

HEISE Dual Row Marine LED Curved Light Bar - 30 inch

Features

Dual Row Marine LED Curved Light Bar - 30"

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W
• (60-3W CREE LEDs)
• Raw Lumens: 14400
• LUX at 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 31 inches
• Brackets Turned Outward – 33.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity
