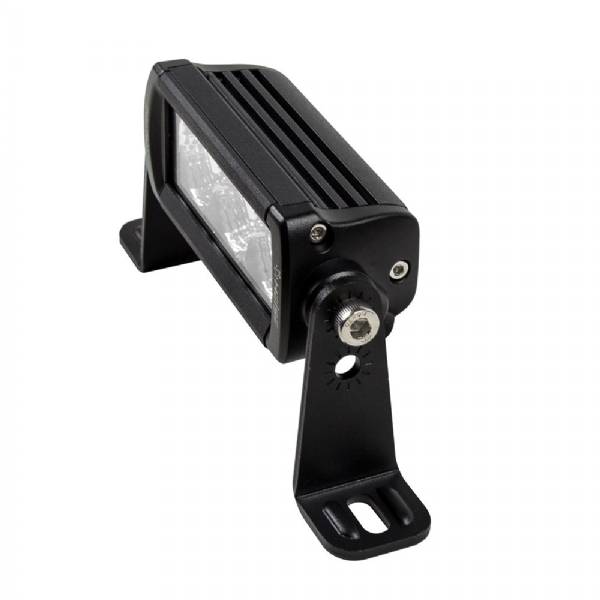

HEISE Single Row Slimline LED Light Bar - 5-1/2 inch

Item: HE-SL550
This item is brand new
$123.99

Qty:

This item ships within 1 day
cw|cw|pe
Ask a question   Tell a friend



Features

Single Row Slimline LED Light Bar - 5-1/2"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 9W (3–3W OSRAM LEDs)
  • Raw Lumens: 720
  • LUX @ 10M: 10
  • Color Temperature: 6000K
  • Beam Pattern: 90° Flood

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 5.25"
  • Brackets turned outward – 7.25"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: .4 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity



Specifications

Item number: HE-SL550
UPC: 086429317400
Package weight: 2.15 lb
