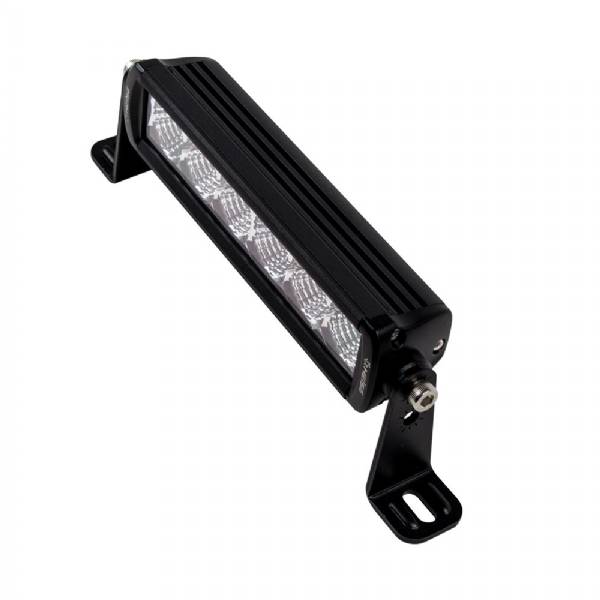

HEISE Single Row Slimline LED Light Bar - 9-1/4 inch

Item: HE-SL914
This item is brand new
$154.99

Qty:
Backorder, ships in 3 - 4 weeks
cw|cw
Ask a question   Tell a friend



Features

Single Row Slimline LED Light Bar - 9-1/4"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 18W (6–3W OSRAM LEDs)
  • Raw Lumens: 1440
  • LUX @ 10M: 22
  • Color Temperature: 6000K
  • Beam Pattern: 90° Flood

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Side and Bottom Mounting
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 9"
  • Brackets turned outward – 11"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: .9 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity



Specifications

Item number: HE-SL914
UPC: 086429317417
Package weight: 2.85 lb
