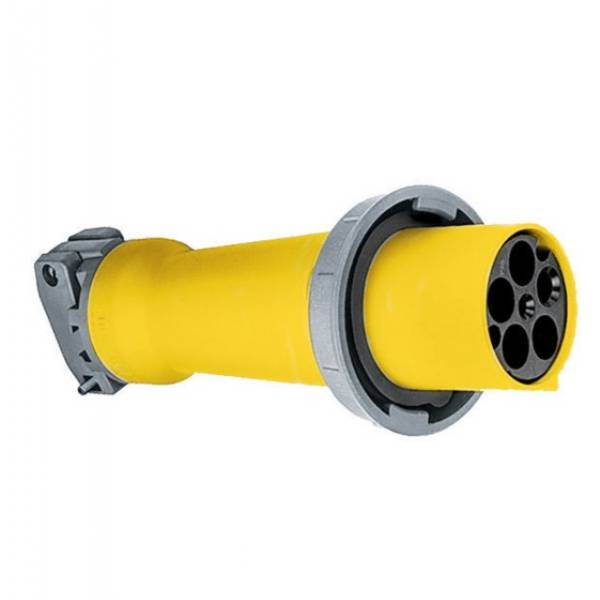

HUBBELL M5100C7R 100A 480V Female Connector Body
Item: M5100C7R
This item is brand new
$777.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|wi
This item is brand new
$777.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|wi
Features
Hubbell M5100C7R 5-Wire 100 Amp 480 Volt Female Connector Body
Model: M5100C7R- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| Number Of Poles | 4 |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 100 |
| Connectivity | Pressure Screw Terminal |
| Current Rating | 100 |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| ConductorRange | #3AWG to #1/0AWG |
| Number Of Wires | 5-Wire |
| Number of Conductors | 5-Wire Grounding |
| Mates with | M5100B7R |
Specifications
Item number: M5100C7RUPC: 783585510088
Package weight: 4.00 lb
