ICOM M510 VHF

Item: M510 11 USA
This item is brand new
$699.95
On Sale !!!
Request price match

This item ships within 1 day
wi|sw|wi|ln

Description

Features

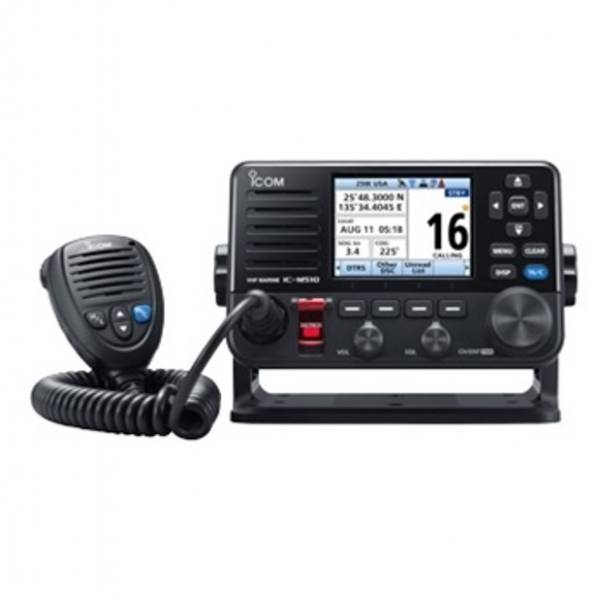

Icom M510 VHF Radio

Model: M510 11 USA

MMSI reset dongle
Hand microphone with AquaQuake™
Front and back microphone connection ports
Optional voice scrambler
External speaker connection
Supports 4-digit channels
Option to connect external GPS

Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.

The M510 includes a full color 3.5" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.

The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.

Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.

Specifications

General
Usable channels	USA, INT, CAN, WX channels
Type of emission	16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
Power supply requirement	13.8V DC (11.7—15.9V DC)
Current drain TX (25W output)	5.0A
Current drain RX (Max. Audio)	3.3A
Operating temperature range	—20°C to +60°C; —4°F to +140°F
Antenna impedance	50 Ohm
Transmitter
Output power (at 13.8V DC)	25W, 1W
Max. frequency deviation	+/- 5.0 kHz
Frequency tolerance	+/- 0.5 kHz
Spurious emissions	Less than -70 dBc (at 25W)
Residual modulation	More than 40 dB
More than 40 dB	More than 70 dB
Receiver
Sensitivity (at 12dB SINAD) DSC (1% BER)	0.32 µV typical 0.89 µV emf typical
Adjacent channel selectivity DSC (1% BER)	More than 75 dB More than 73 dBµ emf
Spurious response DSC (1% BER)	More than 75 dB More than 73 dBµ emf
Intermodulation DSC (1% BER)	More than 75 dB More than 68 dBµ emf
Hum and noise	More than 40 dB
Audio output power at 10% distortion	More than 15W with a 4? external speaker
Wireless LAN
Wireless LAN standard	IEEE 802.11 b/g/n
Authentication and Encryption	WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels	1 to 13 (2.4 GHz band)**
Output power	Less than 10 mW/MHz

What's in the Box:

M510
Speaker microphone, HM-205RB
Microphone hanger
DC Power Cable
Mounting Bracket Kit
