ICOM M605 25W VHF AIS Rear Mic Connector

Item: M605 41 USA
This item is brand new
$1,049.95
Request price match

This item ships within 1 day
ln|sw|wi|ln

Description

Features

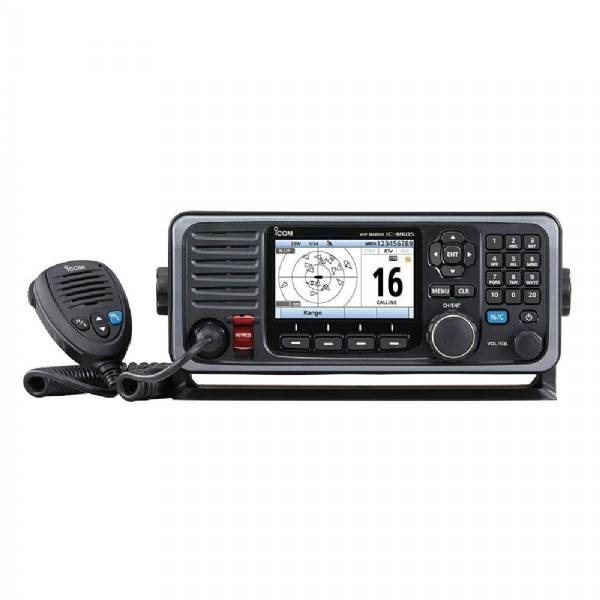

Icom M605 VHF AIS Receiver fixed mount with color display and rear mic connector

Model: M605 41 USA

4.3" wide color TFT LCD
Night mode ensures readability in dark places
Intuitive user interface
NMEA2000™ and NMEA0183 connectivity
Class D DSC
Active noise cancelling
Last call voice recording
30W listen back hailer
Built-in horn/foghorn
IPX8 submersible (1 m depth of water for 60 minutes)
Dual and Tri-watch functions
Weather channels with alert function
DSC Multi-task function
AquaQuake™ draining function
Instant-access button for Channel 16 and call channel
Supplied speaker microphone, HM-205RB can be connected to the rear panel

All functions of the IC-M605 (including DSC and distress operation) can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and/or HM-195 series COMMANDMIC™, with an intercom function available among the main radio and controllers. The system allows for maximum operating flexibility anywhere on your boat.

A combination of the directional keypad and soft keys provides simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.

The IC-M605’s internal speaker enhances intelligibility of received calls. The waterproof, paper speaker-cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.

A weak signal adjacent to a strong signal can be clearly received by the IC-M605. Its commercial grade receiver performance (selectivity and IMD: more than 80 dB) provides reliable communication at all times.

The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241.

The Active Noise Canceling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

When connected to the optional horn speaker, SP-37, you can talk with crews on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.

The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.

Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for other equipment

With an optional voice scrambler unit, UT-112, the IC-M605 provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.

With an integrated AIS receiver, the IC-M605 can show real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.

Specifications

General
Usable channels	USA, CAN, INT, WX channels
Operating temperature range	—20°C to +60°C; —4°F to +140°F
Antenna impedance	50 ? (SO-239)
Transmitter
Output power (at 13.8 V DC)	25 W, 1 W
Max. frequency deviation	+/- 5 kHz
Frequency tolerance	+/- 5 ppm
Spurious emissions	Less than —70 dBc (at 25 W)
Residual modulation	More than 40 dB
Adjacent channel power	More than 70 dB
Receiver
Intermediate frequency CH70	30.15 MHz, 450 kHz (1st/2nd) 21.70 MHz, 450 kHz (1st/2nd)
Sensitivity (at 12 dB SINAD) CH70 (1% BER)	0.22 µV typical 0.71 µV emf typical
Adjacent channel selectivity CH70 (1% BER)	More than 80 dB More than 80 dBµ emf
Spurious response CH70 (1% BER)	More than 77 dB More than 73 dBµ emf
Intermodulation CH70 (1% BER)	More than 80 dB More than 73 dBµ emf
Hum and noise	More than 40 dB
Audio output power (at 10% distortion)	More than 15 W with a 4 Ω external speaker
Input Voltage	13.8 V DC (11.7—15.9 V DC)
Input Draw	Tx 25 W output 6A Rx Max. audio 8A

What's in the Box:

M605-41 USA
Hand microphone (HM-205RB)
GNSS antenna (UX-241)
PC power cable
Mounting bracket kit
OPC2384 Adapter Cable
