ICOM MA510TR AIS Transponder w/GPS Antenna

Item: MA510TR
This item is brand new
$999.95

NO LONGER AVAILABLE
Backorder, ships in 3 - 4 weeks
|cw
Ask a question   Tell a friend


Accessories
Description

Features

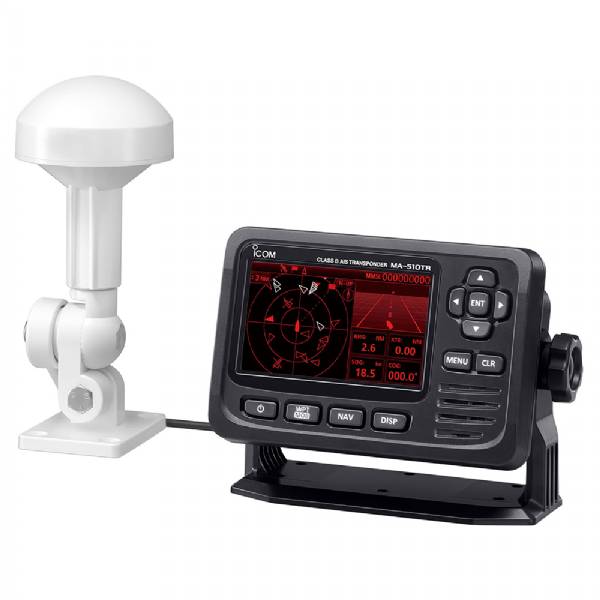

MA510TR AIS Transponder with GPS Antenna

The Class B AIS Transponder with GPS navigation function and NMEA 2000™-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder.

Features:

  • Output Power: 2W
  • NMEA: NMEA 2000™, 0183/-HS Connectivity
  • Waterproof Rating: IPX7

Large Color Display

The MA-510TR comes with a 4.3" color TFT LCD. The wide-viewing angle screen provides clear navigation details such as potential collision vessels marked as red, and registered friends marked as yellow. All vessels that are within 6NM CPA and 60 minutes TCPA from a vessel are put into a respective danger or friend list. The day-mode function allows visibility in direct sunlight. Night-mode provides optimal viewing brightness for comfortable operation.

Simplified GPS Navigation Function

The built-in GPS Navigation function guides users to waypoints or AIS targets. Assign up to 100 destinations or fishing spots.

Silent Mode

Operate securely and privately with the silent mode function. Switch off the AIS transmitter to temporarily stop sending out position location. Other AIS signal reports art still received when silent mode is on. Keep fishing spots privately from other vessels by utilizing silent mode.

Safety Features:

  • Collision Alarm Function - When vessels come into the CPA or TCPA range, the vessel's icon blinks and a warning sound is emitted on the plotter display (when connected to external audio equipment).
  • Anchor Watch Alarm - An alarm is set off when the vessel is drifting when anchored.
  • Man Overboard - When users receive a Man Overboard (MOB) signal, the MA-510TR can set the MOB as a destination.

NMEA Connectivity

The MA-510TR can connect to both NMEA 2000™ and NMEA 0183/-HS. Connect to a NMEA 2000™ network such as an external plotter, marine radar and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver and a switch button.

Other Features:

  • Individual DSC Call available with a compatible Icom VHF with an accessory cable
  • USB connectivity
  • Multi-lingual user interface
  • 12V and 24V compatible



Specifications

Item number: MA510TR
UPC: 731797036421
Package weight: 5.45 lb
Compatible With

List of Compatible Units:

ICOM MBF7 Flush Mount Kit f/M510
ICOM UT112A Digital Voice 32 Code Scrambling Unit
ICOM Wireless Hailer/N2K Interface for M510


Note: Displayed are products sold in gps4us store.
There might be more GPS units compatible with chosen accessory.
