LENCO 14 inch x12 inch standard performance kit w/o switch

---

Contents of the package

Features

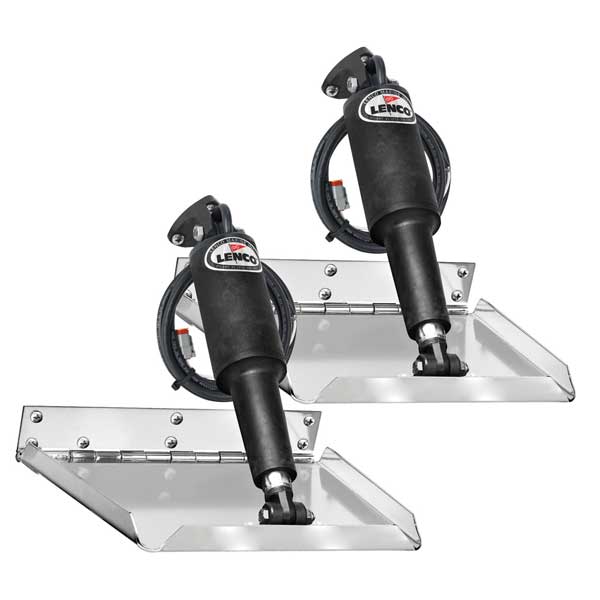

14" x 12" Standard Performance Trim Tab Kit w/o Switch
Electro-Polished - 12 Gauge Blades / 12-Volt Actuators

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades.

Sugessted Boat Length:19'-34'
L" x W":14" x 12"
Minimum Transom Height:11"

Kit Contents

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
  =
• 2 each of #15054-001 actuators with 6' lead and Deutsch plugs

• 2 each of #30133-103 20' actuator extension wiring harnesses

• 2 each of #15085-001 (#116) upper mou nting bracket with gland seal

• 2 each of #50014-001 (#119) lower mounting bracket

• 1 each of the Lenco owner's / installation manual

• All necessary stainless steel mounting hardware

Specifications:

• System Type: Single Actuator

• Blades: 12 Gauge Stainless Steel

• Finish: Electro Polished

• Switch Kit: Sold Separately

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat

Specifications

Item number: 15038-101
UPC: 874847004602
Package weight: 24 lb

---
