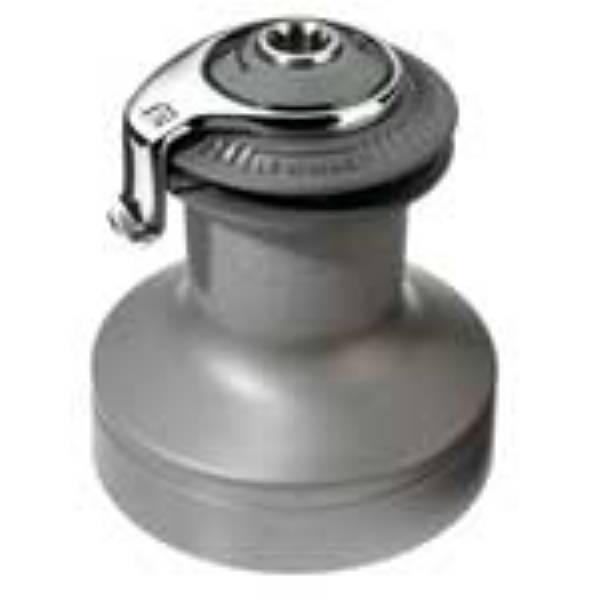

LEWMAR 16AST Single Speed Self Tailing Aluminum W inch

Item: 49016000
This item is brand new
$767.95
Request price match

This item ships within 1 day
wi|wi

Features

The Lewmar 'Wavespring' self-tailer combines their renowned and gentle wave grip feature with self adjusting springs. It handles today's smaller diameters, as well as the traditional larger Dacron composite ropes. A sleek, minimum-friction feeder arm provides absolute snag-free operation.

Mounting Instructions
5 x M6 (1/4 in) c'sk head screws on 94mm (3 11/16 in) PCD. Lewmar recommends that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch. This product is Made to Order.

Specifications

Gear Ratio	Power Ratio	Weight(lb)
2:1	15.8:1	6.4

Dimensions

Drum Diameter D(in)	Base Diameter B(in)	Height H(in)	Line Entry L(in)	Line Size(in)
2 9/16	4 3/4	5 3/4	2 5/16	5/16-1/2

Specifications

Item number: 49016000
UPC: 743683001536
Package weight: 8.00 lb
