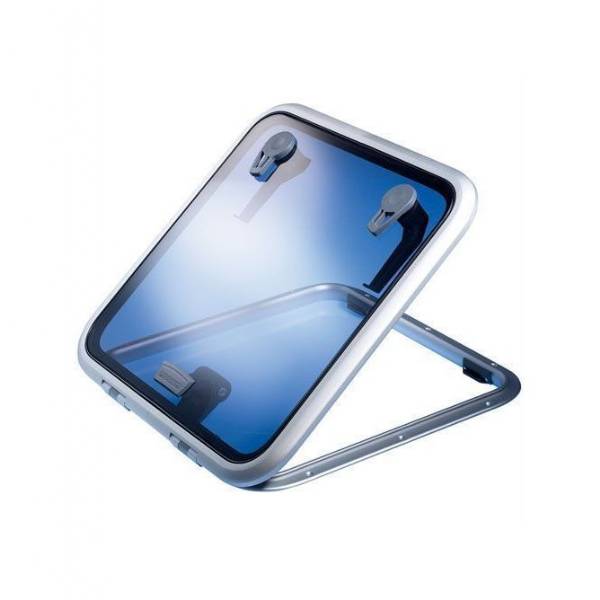

LEWMAR Size 00 Low Profile Hatch Flange Base

Item: 39900030
This item is brand new
$287.95
Request price match

This item ships within 1 day
wi|wi

Features

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sail boats and the larger hatches can even be used as foredeck hatches on smaller to mid size yachts

All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Grey	3.5	5/16

Dimensions

Length X (in)	Width Y (in)	Height Z (in)	Radii R (in)	Cut-Out Length X1 (in)	Cut-Out Width Y1 (in)	Cut-Out Radii R1 (in)
11 1/16	11 1/16	1	2 7/8	8 5/16	8 5/16	1 11/16

Specifications

Item number: 39900030
UPC: 743683107009
Package weight: 5.00 lb
