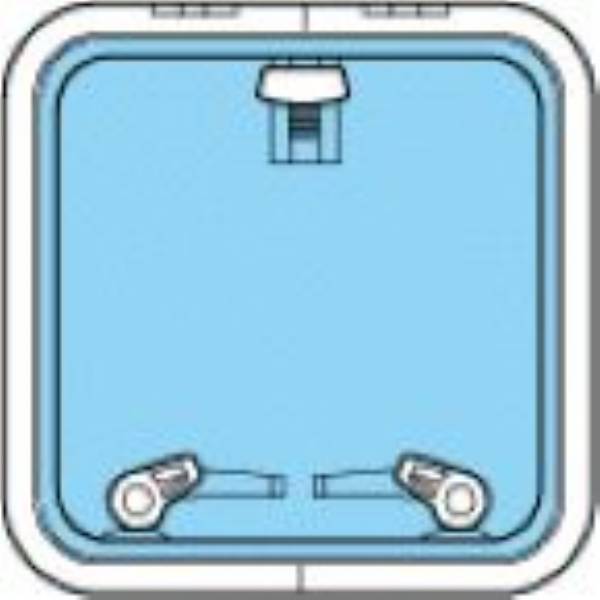

LEWMAR Size 44 Low Profile Hatch Flange Base
Item: 39944030
This item is brand new
$580.95
Request price match
This item ships within 1 day
ln|wi|ln
This item is brand new
$580.95
Request price match
This item ships within 1 day
ln|wi|ln
Features
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 10.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 20 3/16 | 20 3/16 | 1 | 2 7/8 | 17 3/8 | 17 3/8 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications
Item number: 39944030UPC: 743683107160
Package weight: 12.00 lb
