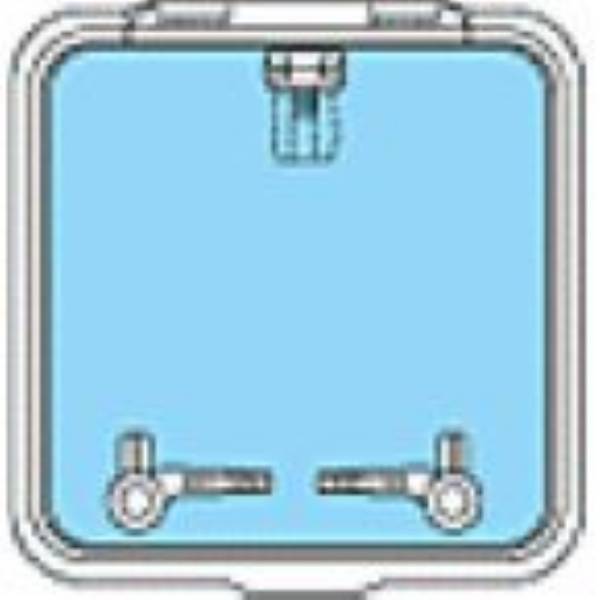

LEWMAR Size 44 Ocean Series Hatch Flange Base
Item: 39644070
This item is brand new
$722.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|wi
This item is brand new
$722.95
Request price match
Backorder, ships in 3 - 4 weeks
wi|wi
Features
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4").
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| 1" Flange | Smoke Grey | 11 | 1/2 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) |
| 20 1/16 | 20 1/16 | 1 11/16 | 3 | 3/16 | 11 7/8 | 17 3/8 | 17 3/8 | 1 11/16 |
Specifications
Item number: 39644070UPC: 743683102462
Package weight: 13.00 lb
