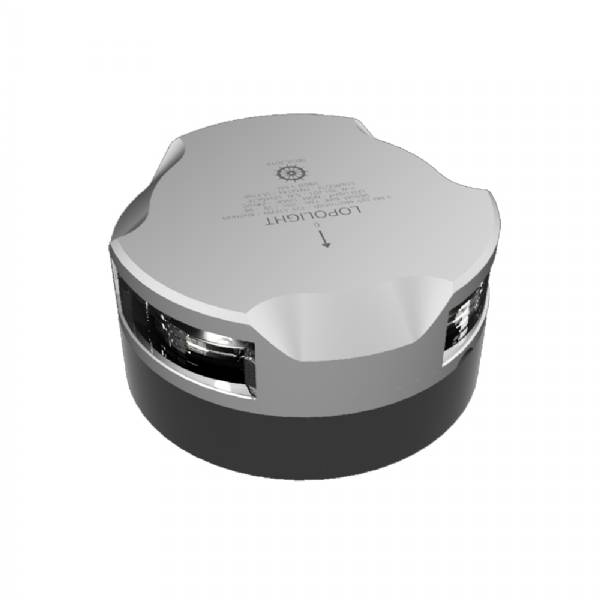

LOPOLIGHT Masthead, Anchor and Stern Light - 3nm - Single - Silver Housing - Horizontal Mount f/Sailing Vessels

Features

Masthead, Anchor & Stern Light - 3nm - Single - Silver Housing - Horizontal Mount for Sailing Vessels

This LED navigation light consists of three high-power LEDs that produces light in the specified angle utilizing special designed PMMA light guides. The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3 and LY4 compliant system.

Features:

• Vessel size: <12m (<39.4’)
• Visibility: >3 nautical mile
• Intensity: >5,4cd
• Power consumption;
• Stern: 1,3 Watt; Current: 0,11A @12 VDC - 0,05A @24 VDC
• Stern / Masthead (Anchor): 4 Watt; Current: 0,33A @12 VDC - 0,15A @24 VDC
• Operating voltage: 10 - 32 VDC
• Number of LEDs: 1 / 2
• Light colour: White
• Operating temperature: -25°C to +55°C
• IP rating: IP68
• Mounting: Horizontal
