LOPOLIGHT Tri-Color Navigation Light w/Anchor Light and Strobe - 2nm - 0.7M Cable - Silver Housing

Features

Tri-Color Navigation Light with Anchor Light & Strobe - 2nm - 0.7M Cable - Silver Housing

2 nautical miles 201-007G2S (12 – 20m / 39.4’ – 65.6’)

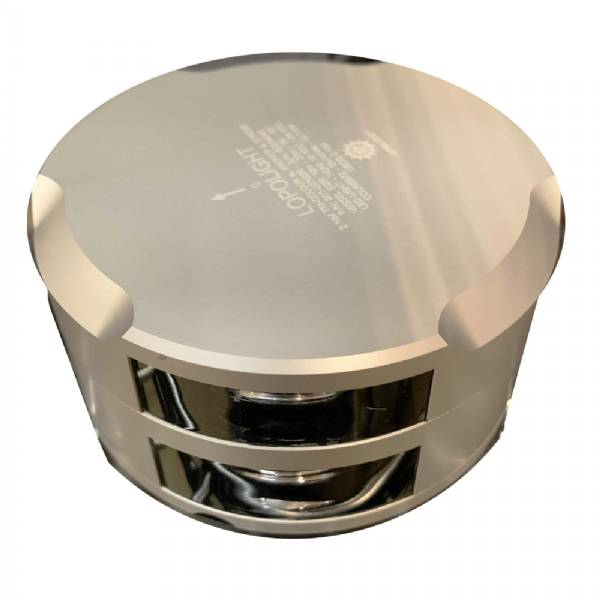

The LED navigation light consists of two individual lights; A tri-color with three high-power LEDs that produces light at the specified angle utilizing specially designed PMMA light guides, and an Anchor light with a single array of LEDs that produces light at the specified angle.

Each light can be activated separately. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration-proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.

This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3, and LY4 compliant system.

Features:

• Vessel size: 12m – 50m (39.4’ - 164’)
• Visibility: >2 nautical miles
• Intensity: >5,4cd
• Power consumption:
• Tri-color: 6,5 Watt; Current: 0,54A @12 VDC - 0,26A @24 VDC
• Anchor: 2,6 Watt; Current: 0,22A @12 VDC - 0,11A @24 VDC
