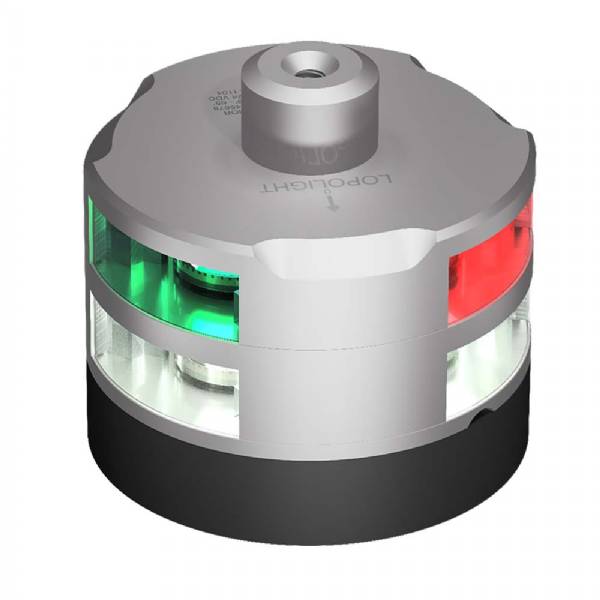

LOPOLIGHT Tri-Color Navigation and Anchor Light - Strobe Function and Windex Mount - 2nm - 0.7M Cable - Silver Housing

Features

Tri-Color Navigation & Anchor Light - Strobe Function & Windex Mount - 2nm - 0.7M Cable - Silver Housing

Features:

• LED (Light Emitting Diode) navigation light.
• The unique and precise definition of light angles.
• Rugged and unbreakable: Precision machined anodized aluminum housing protects the LED and electronics.
• Completely waterproof and vibration proof: Interior is fully filled and sealed with special potting resin.
• Waterproof to IP 68+ (submersible).
• Low power consumption – 70 to 90% less than traditional navigation lights.
• Full brightness with input voltages ranging from 10 to 32 Volts.
• All Lopolights have been tested several times during production, a total of more than 24 hours.
• Easy to install, adaptor and screws included (when applicable)

Specifications:

• Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel set screws, Epoxy, Polyurethane.
• Supply voltage: 10,0 – 32,0 VDC
• Power consumption: Tricolor: 2,3 Watt, Current @ 12 VDC: 173 mA: Current @ 24 VDC: 100 mA, Anchor: 1,6 Watt, Current @ 12 VDC: 130 mA: Current @ 24 VDC: 65 mA
• Light colors: Red/Green/White
• Intensity: >5,4 cd
• Visibility (@K=0.8): 2 nautical miles
• Number of LED's: 3 / 28
• Suggested feed cables: 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2
• Vessel size: 12 - 20 meter (39,4 - 65,6 feet)
• Mounting: Horizontal

Included in package:

• Navigation light pre-cabled with 0.7M shielded marine-grade cable
• 1 K-Lock PE mounting base
• Installation guide
