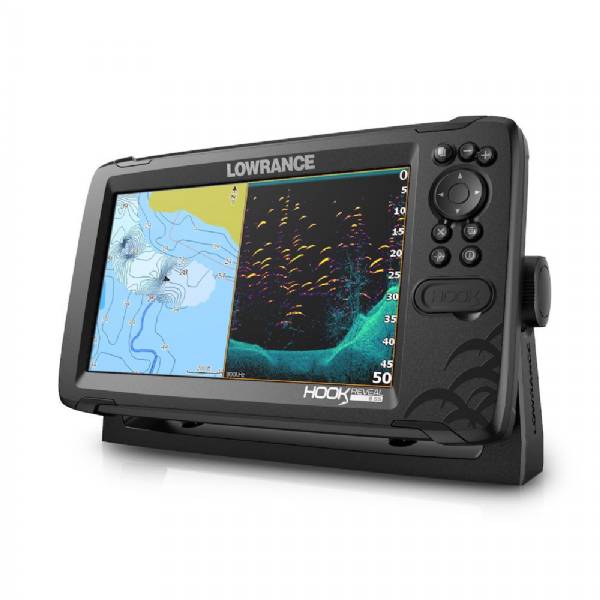

LOWRANCE HOOK Reveal 9 50/200kHz C-Map Contour plus
This item is brand new
$442.95
Backorder, ships in 3 - 4 weeks
cw|cw|sw|wi|ln
Features
Lowrance HOOK Reveal 9 50/200kHz with C-Map Controur+
Model: 000-15852-001- Fish Reveal
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- 50/200 HDI transducer with Low/High CHIRP and DownScan Imaging™
- C-Map Controur+
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features — FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.
Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.
HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas — down to ½-foot contours — with Genesis Live.
Specifications| Display | |
| Backlight Color | Pure White LED |
| Resolution | 800 x 480 |
| Screen Brightness | >1000 NITS |
| Size and Type | 9" (228 mm)SolarMAX Display |
| Viewing Angles | 80° top/bottom, 85° left/right |
| Electrical | |
| Power Consumption, max. | 1.50A @ 13VDC with backlight on full |
| Power Consumption, min. | 1.50A @ 13VDC with backlight on full |
| Power Consumption, typical | 1.50A @ 13VDC with backlight on full |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Environment | |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Shock and Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating | IPX7 with card door closed |
| GPS | |
| Correction | DGPS, WAAS |
| Time to First Fix | 30s |
| MFD | |
| Cartography included | C-Map Controur+ |
| Cartography supported | C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay) |
| External Storage | Micro SD Card(32 gb Max) |
| GPS | 1 Hz GPSGLONASSWAASEGNOSMSAS |
| Sonar (inc. compatibility) | Integrated:CHIRPBroadbandDownScan |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails |
| Compass Safe Distance - Metric, imperial | 12" (300mm) |
| Physical | |
| Dimensions (W x H x D) | 10.92" (277.3 mm) x 6.90 (175.2 mm) x 4.42" (112.3 mm) |
| Mounting Type | Gimbal Bracket,Front Dash, Flush Mount |
What's in the Box:
- HOOK REVEAL 9
- C-Map Controur+
- HOOK2 9" BRACKET & Knobs
- HOOK2 POWER CABLE (5/7/9/12)
- HDS FUSE & FUSE HOLDER
- HOOK2 7/9/12 CORNER CLIPS
- HOOK REVEAL 50/200 HDI XDCR PK
Specifications
Item number: 000-15852-001UPC: 9420064119998
Package weight: 11.03 lb
