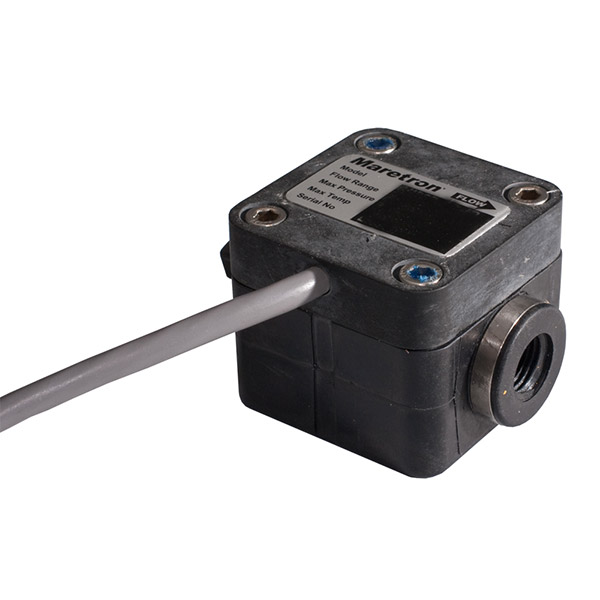

MARETRON Fuel Flow Sensor - 2-100 LPH

Contents of the package

Features

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)

• All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads

• Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)

• Cable Length: 1m (3.28')

• Strainer Size: 200 Mesh (If not already installed after fuel filter)

• Port Size: 1/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Maximum Operating Pressure: 68.95 Bar (1000 PSI)

• Weight: 775g (1.71 lb)

• Construction: Aluminum Housing Material

• Rotors: PPS (Ryton)

• Shafts: 316/304 Stainless Steel

• Magnets: Samarium Cobalt

• O-Ring: FKM (Viton™)

Specifications
