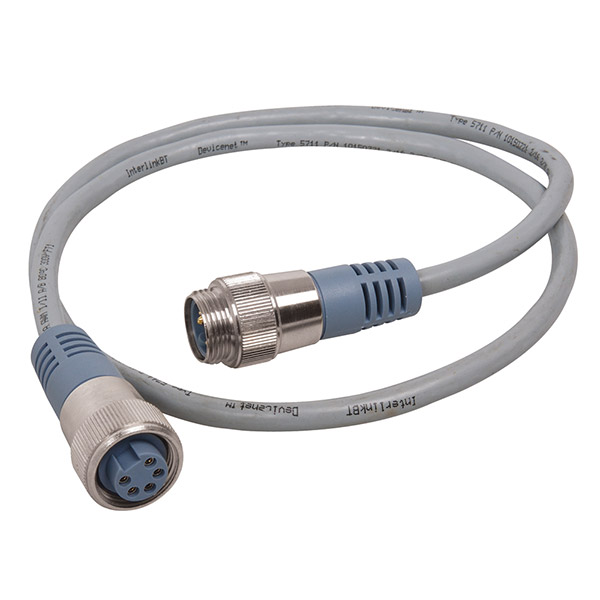

MARETRON Mini Double-Ended Cordset - 2 Meter
Item: NM-NG1-NF-02.0
This item is brand new
$53.95
Backorder, ships in 3 - 4 weekscw|cw
Contents of the package
Features
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 1.06?Electrical
Current Rating: 9.0 Amps
Voltage Rating: 300 V
Cable
Outer Jacket Mat/Color: PVC/Blue
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x15 AWG, 2x18 AWG, 18 AWG Drain Wire
Shielding (3-Levels): Braid (Overall), Foil (Power Pair), Foil (Data Pair)
Environmental
Protection Class: IEC IP67, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
Approval
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
Specifications
Item number: NM-NG1-NF-02.0
UPC: 873804002057
Package weight: 1.05 lb
