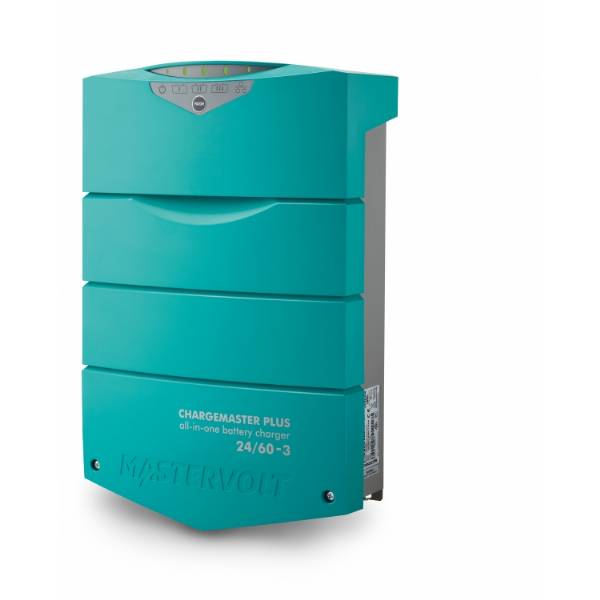

MASTERVOLT ChargeMaster Plus 60A 24v Output 120/230V Input

Item: 44320605
This item is brand new
$1,343.00

This item ships within 1 day
cw|cw|sw|wi|ln

Description

Features

Mastervolt ChargeMaster Plus 24/60-3 Czone

Model: 44320605

MasterBus, CZone and NMEA communication.
Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
Charges multiple batteries while being underway.
Offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.
Safe Charge: quickly recognize the State of Charge for extended battery life.
Very wide operating range of 80-275 V AC, 35-70 Hz.
Compact, easy to connect and quick to install.

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Specifications

Communication & monitoring
Communication interfaces	MasterBus, CZone, NMEA
General specifications
Nominal output voltage	24v
Max. charge current per output	60A
Smart In-/Output output voltage	12 or 24 V
Smart In-/Output output current	5-10 A at 12 V; 5-20 A at 24 V (adjustable)
Smart In-/Output input current	max. 20 A at 24 V
Max. AC current (230 V / 120 V)	10.2 A / 20.4 A
Total charge current	60 A at 28.8 V
Number of battery outlets	3 (max.)
Battery capacity range	200-500 Ah
Nominal input voltage	120/230 V (80-275 V) 50/60 Hz
AC connection	screw terminals, suitable up to up to 6 mm
Power supply mode	yes
Display/read-out	LED display
Dimensions, hxwxd	15.1 x 9.8 x 5.0 inch
Weight	13.0 lb
Approvals	CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC, RCM/C-Tick
Technical specifications
Charge characteristic	IUoUo, automatic / 3-traps+ voor Gel/AGM/nat/Lithium Ion + een door de gebruiker gedefinieerde optie
Temperature compensation	-60 mV/°C / -76 mV/°F; temperature sensor included
DC voltage compensation	through MasterShunt
Power consumption (DC side)	< 2 mA (MasterBus off)
Current Control function	yes, through MasterBus
Power factor control	> 0.98
Temperature range (ambient temp.)	-13 °F to 176 °F
Cooling	vario fan
Protection degree	IP23, vertical mounting
Protections	over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact)	yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:

ChargeMaster Plus 24/60-3
Mounting bracket
Battery temperature sensor
Drop cable CZone/MB (1m)
MasterBus Terminator
User manual
