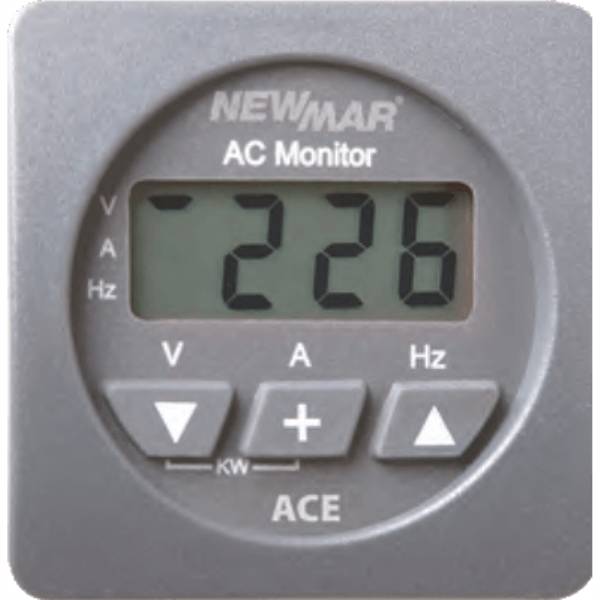

NewMar ACE AC Energy Monitor

NewMar digital instruments provide comprehensive monitoring of onboard AC and DC electrical systems. They give quick and accurate information on all important aspects of electrical system status - voltage, current, power consumed, power available, and AC frequency accuracy is +/- 1%.

Programmable visual and audio alarms alert of abnormal system conditions: Low/High Voltage and Low/High Frequency. An optional sensor, model DIR, will relay the alarm signal to remote monitor panel/audio devices.

All read-out modes and alarm programming of multiple functions are easily controlled via touch-pads on the instrument face. LCD displays are easily read in bright sunlight and feature five level adjustable back-lighting for conservation of night vision. High/low voltage and frequency alarms, and DC monitors are NMEA 0183 compatible.

The meter/touch-pad and surrounding bezel are fully waterproof are suitable for installation in exposed above deck areas (provided there is no water ingress to the rear of the mounting surface). All models are designed for through-bulkhead mounting.

For 115/230 volt systems. Reads: 90-300 VAC (True RMS), 0-150 amps, frequency from 40-70 Hz and power from 0-45 kW. Features alarm circuits for high/low voltage and high/low frequency. Can be programmed to provide automatic generator shutdown in the event that voltage or frequency exceed predetermined range. Current and voltage transformers are included. 12 or 24 volt source required to power meter. Available in 2-1/2" face.
