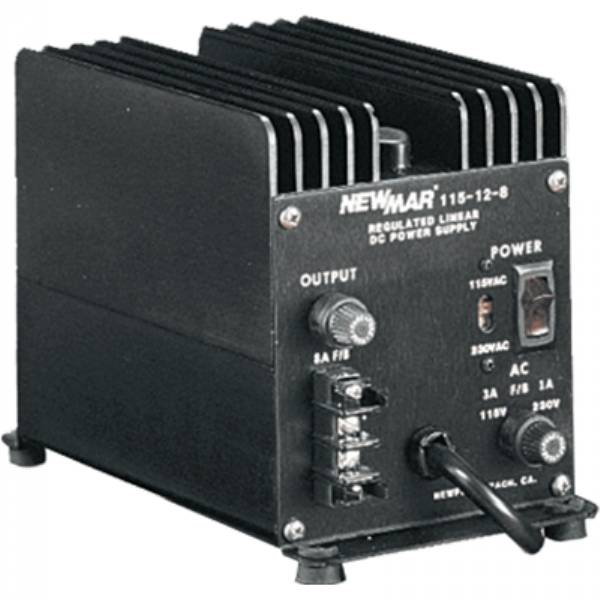

Heavy Duty Series Power Supply

115/230 VAC to 12 VDC, 8 Amp Power Supply

Designed for powering 12 VDC communication/navigation equipment aboard commercial vessels where reliability is the primary consideration. Input voltage 115 or 230 VAC selected by slide switch on the front panel. Excellent Regulation and Ripple Spec: Output voltage maintained within 1% under all line and load conditions within rating.

Built for the demanding marine environment, these units feature polyurethane conformal coated PC board and corrosion resistant heavy duty aluminum case with integral shock mounts. Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components. Supply and load circuit protection includes: overvoltage, current limit, thermal overload, and input/output fusing.

Specifications
