NEWMAR TS2X4 Terminal Strip

Features

Terminal Strips

• Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4? centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
• #8 screws accommodate various size ring terminals and each terminal strip is rated for 100 amps.

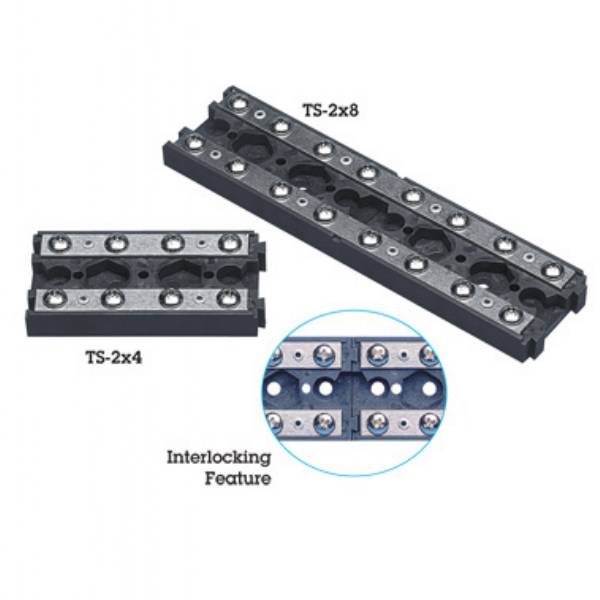

• Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.

Specifications
