RARITAN Macerator pump - 24vdc w/waste valve

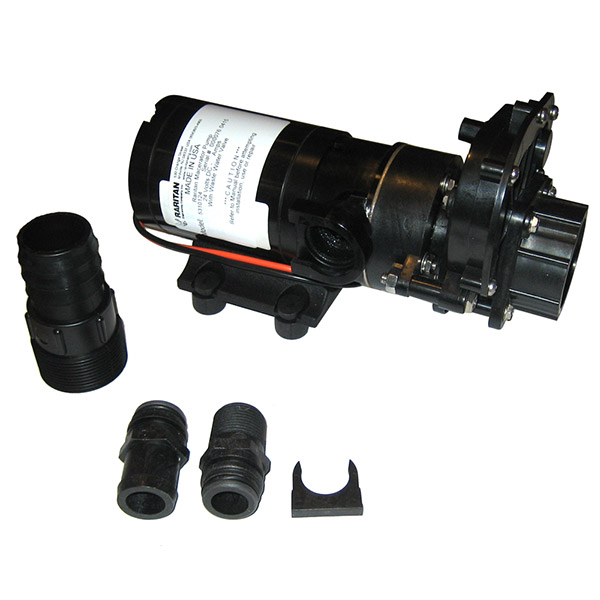

Contents of the package

Features

• Waste valve assembly isolates the waste matter from the pump during maintenance - allows you to remove the pump without disconnecting plumbing

• All stainless steel bolts to avoid corrosion problems

• Spring loaded Viton shaft seal is used to prevent premature leaks

• Proprietary rubber impeller compound allows longer dry running time

• PUMP: Self priming Flexible rubber impeller with Stainless steel wearplate

• Impeller: Raritan Proprietary Nitrile compound

• Blade: Stainless steel double cut

• Seal: Viton Lip with 316 SS spring and case

• Motor: Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, Powder coated housing with sealed ball bearing

• Ports: Inlet: 1-1/2" hose barb & 1-1/2" NPT Male

• Outlet: 3/4" MNPT

• Lead wires: 14 GA, Red and black

• Weight: 5 lbs.

• Approvals: Ignition protected, ISO 8846

Specifications
