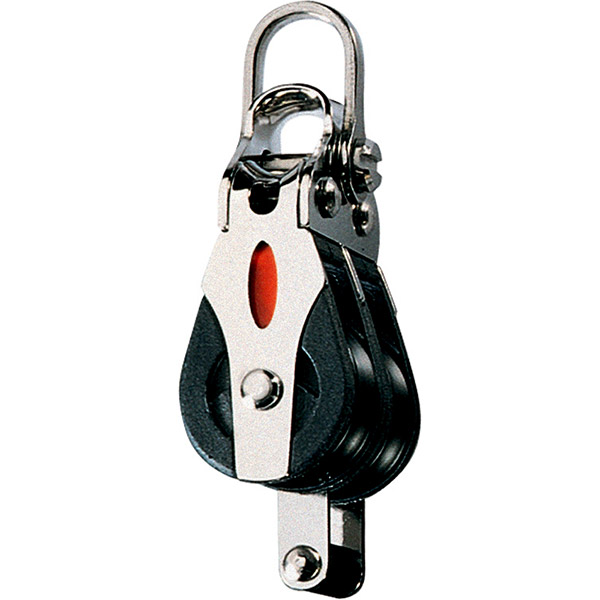

RONSTAN Series 20 ball bearing block - double - becket - 2-axis shackle head

Item: RF20212
This item is brand new
$33.84
Backorder, ships in 3 - 4 weeks
cw|cw

Accessories

Collapse all - Expand all +

Various

RONSTAN Standard dee slotted pin shackle - 5/32 inch pin - 5/8 inch l x 3/8 inch w

RF615
Standard dee slotted pin shackle - 5/32 inch pin - 5/8 inch l x 3/8 inch w

Description

Contents of the package

Features

Series 20 Ball Bearing Block - Double - Becket - 2-Axis Shackle Head

Features:

Low friction
High static and dynamic load capacity
Lightweight
Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Two-Way head can be fixed at 0° or 90°

Applications:

Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls

Materials:

Stainless steel ball bearings
UV Stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:350kg(770lbs)
B. L.:700kg(1,540lbs)
Weight:44g(1.6oz)

Specifications

Item number: RF20212
UPC: 9316800255566
Package weight: 0.1 lb
