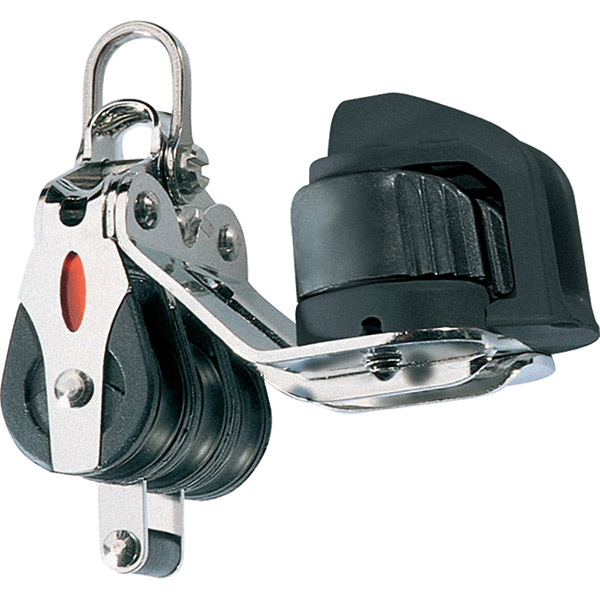

RONSTAN Series 20 ball bearing block - triple - becket - cam cleat - 2-axis shackle head

---

Contents of the package

Features

Series 20 Ball Bearing Block - Triple - Becket - Cam Cleat - 2-Axis Shackle Head

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines

• Dinghy vangs

• Cunninghams

• Traveller controls

Materials:

• Stainless steel ball bearings

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:400kg(880lbs)
B. L.:850kg(1,870lbs)
Weight:122g(4.3oz)

*Line Load through cleat not to exceed 125kg(275lbs)

Specifications

Item number: RF20332
UPC: 9316800255764
Package weight: 0.25 lb

---
