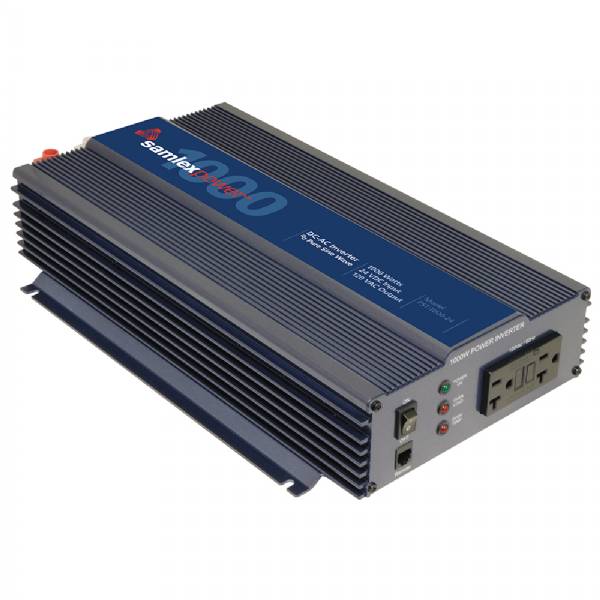

SAMLEX 1000W Pure Sine Wave Inverter - 24V

Features

1000W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.85 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.0 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-15A
• Comes with pin-type battery cable lugs
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1000
• Surge: 2000 Watts
• Remote Control: RC-15A sold separately
• Weight: 8.8 (lbs)
• Weight: 4.0 (kg)
• Dimensions: 9.37 x 15.63 x 3.23 (in)
• Dimensions: 238 x 397 x 82 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
