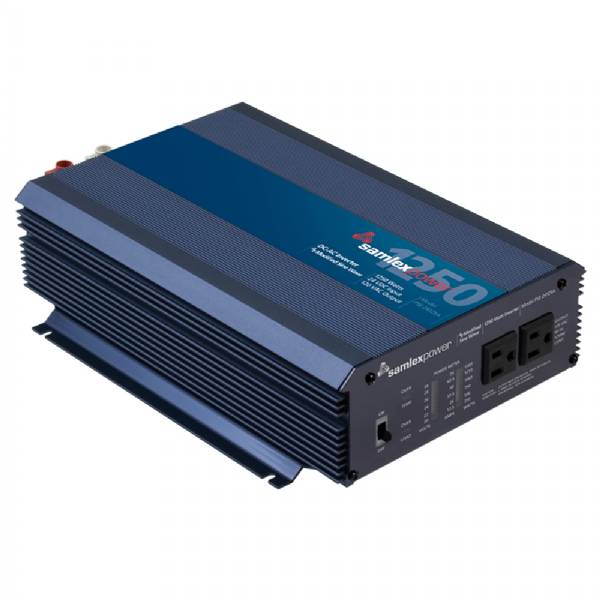

SAMLEX 1250W Modified Sine Wave Inverter - 24V

Features

1250W Modified Sine Wave Inverter - 24V

PSE Series

This high efficiency modified sine-wave DC-AC inverter converts 24 Volts DC (Nominal) to 1250 watts of AC power at 120 Volts, 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available from two standard North American NEMA 5-15R receptacles. Features include overload, over-temperature, low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.

Features:

• High efficiency PWM design
• LED bar graphs indicate input voltage, input current and output power
• Temperature controlled cooling fan
• Low input voltage warning alarm
• Optional remote operation with Samlex Model RC-15 remote control (sold separately)
• Protections: high/low DC input voltage, over temperature and over load shut down
• High output power surge

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 1250 Watts
• Surge: 2500 Watts
• Outlets: 2
• Fuse: 15Ax5
• Remote Control: RC-15
• Weight: 6.8 (lbs)
• Weight: 3.08 (kg)
• Dimensions: 9.45 x 13.19 x 3.35 (in)
• Dimensions: 240 x 338 x 85 (mm)
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers, monitors, fax machines
• Tools and appliances

Specifications
