SHAKESPEARE JF-3 MULTI-BAND GPS WI-FI Cellular Antenna
Features

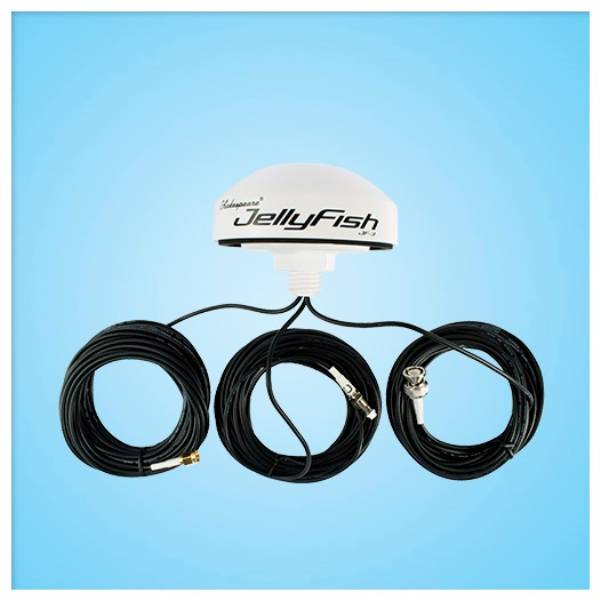

Shakespeare JF-3 Galaxy® Multi-Band Antenna
Model: JF-3UPC: 719441151089
- 3-in-1 antenna functions
- High performance for GPS/WiFi/2G/3G/4G
- Resistant to harsh outdoor environment
- Omni-directional for cellular system
- 1 Cellular/LTE (2G/3G/4G) antennas
- 1 WiFi (802.11abgn, ac) 2.4/5G antennas
- 1 GPS antenna
- Waterproof IP67
- Mounting Thread: M20 x 2.5mm
- Dimensions: 1.6? X 4?
- ?Shakespeare Limited Warranty: 5 years
The JellyFish is a 3-way omni-directional, IP67 waterproof antenna for marine communication and transportation harsh environment applications. This antenna delivers advanced antenna technology for GPS/2G/3G/4G/WiFi in a compact package. The functions of WiFi include 802.11a, 802.11b/g/n and emerging 802.11ac. The antenna has its own ground-plane and can radiate on any mounting surface such as metal, plastic, or fiberglass without affecting performance.
Specifications| WiFi Specifications | |
| Average peak gain | 4.8dBi - 2.4~2.5GHz 6.9dBi - 5~5.4GHz 7.7dBi - 5.4~5.9GHz |
| Average efficiency: | 73% - 2.4~2.5GHz 65% - 5~5.4GHz 70% - 5.4~5.9GHz |
| VSWR Max: | 3.0:1 |
| Impedance | 50 ohm |
| Connector | R/P SMA Male |
| GPS Specifications | |
| Frequency band | 1575.42 +\- 2MHz |
| VSWR | 1.5 Max |
| bandwidth | 20MHz Min. at -10dB |
| Axial ratio / Polarization: | 3dB Max. on a 70mm x 70mm ground plane / Right hand |
| Peak Gain: | 4dBic Min. at 0° on a 70mm x 70mm ground plane |
| Gain & radiation coverage: | ?-4dBic at -90°? ?90° (over 75% volume) |
| Connector: | BNC Male |
Specifications
Item number: JF-3UPC: 719441151089
Package weight: 3.00 lb
